RuyiSDK 外设示例
Pico-ePaper-2.13
本文介绍如何利用 RuyiSDK 为 Milk-V Duo S 开发板快速部署交叉编译环境，并构建 Pico-ePaper-2.13 电子纸显示屏的驱动程序。
1. 准备工作
硬件环境
-
开发板：Milk-V Duo S (512M, SG2000)
-

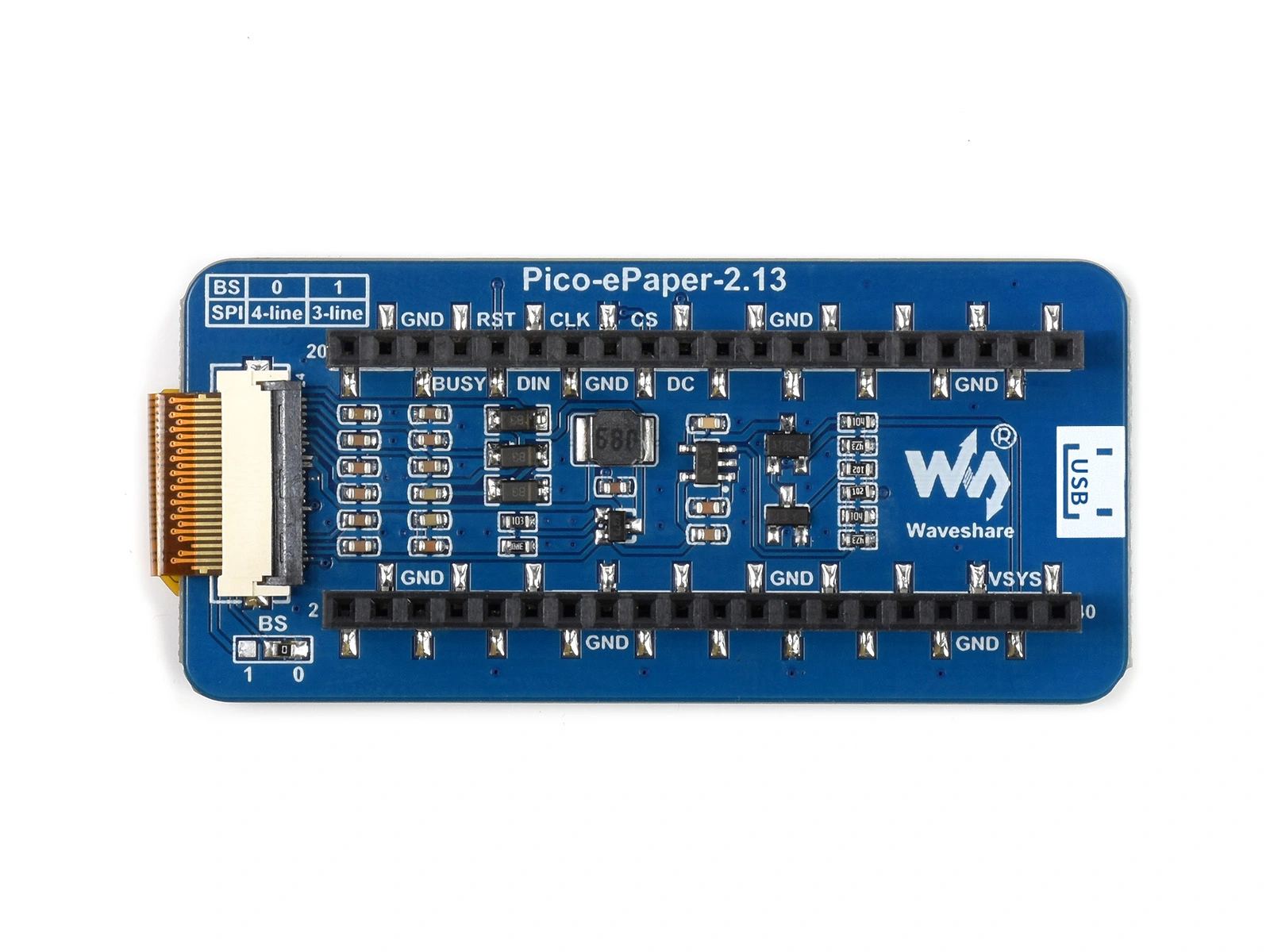

显示屏：Pico-ePaper-2.13 (电子纸显示屏模块)
-
其他：microSD 卡、杜邦线
操作系统安装与启动验证
确保您的开发板已刷入 Debian v1.6.35 系统。
参考文档：https://github.com/DuoQilai/riscv-board-custom-dev/blob/main/Duo_S/boot_DuoS.md
登录系统
将 microSD 卡插入 Milk-V Duo S，重启。使用串口连接登录系统（默认用户名：root，默认密码：milkv）。
2. 硬件连接

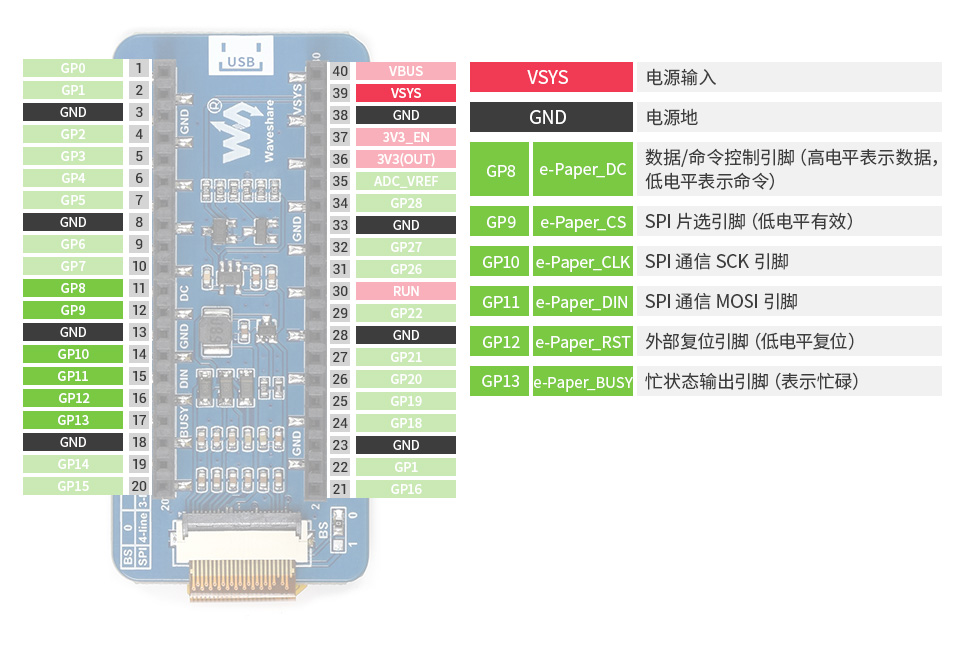

注意：连接杜邦线时不要参考显示屏的丝印，它的标注很容易让人连接错，请参考引脚图连接。
| 连接名称 | GND | VCC | DC | CS | RST | BUSY | CLK | DIN |
|---|---|---|---|---|---|---|---|---|
| 引脚 | GND | VCC (3.3V) | PIN50 | PIN11 | PIN13 | PIN46 | PIN23 | PIN19 |
3. 部署 RuyiSDK 环境
部署编译环境
使用 ruyi 安装工具链及示例代码包：
ruyi update
ruyi install gnu-milkv-milkv-duo-musl-bin
ruyi install milkv-duo-examples
# 创建虚拟开发环境
ruyi venv milkv-duo ./venv -t gnu-milkv-milkv-duo-musl-bin
4. 编译应用与验证
获取源码
# 克隆源码
git clone https://github.com/zwyzwm/Pico-ePaper-2.13.git
cd Pico-ePaper-2.13/Pico-ePaper-2.13/c
编译构建
激活虚拟环境并配置环境变量进行编译：
# 激活虚拟环境并配置环境变量
source ../../../venv/bin/ruyi-activate
export TOOLCHAIN_PREFIX=riscv64-unknown-linux-musl-
export SYSROOT=$(pwd)/../../../venv/sysroot
# 使用 ruyi 软件包提供的 wiringX 库进行编译
export CFLAGS="-mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I$(pwd)/../../../include/system"
export LDFLAGS="-L$(pwd)/../../../libs/system/musl_riscv64"
# 编译
make clean
make
正常情况下，终端会看到类似如下输出：
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* make clean
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* source ../../../../venv/bin/ruyi-activate
export TOOLCHAIN_PREFIX=riscv64-unknown-linux-musl-
export SYSROOT=$(pwd)/../../../../venv/sysroot
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* export CFLAGS="-mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I$(pwd)/../../../../include/system"
export LDFLAGS="-L$(pwd)/../../../../libs/system/musl_riscv64"
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* make
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o ImageData.o -c ImageData.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o font12.o -c font12.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o font16.o -c font16.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o font20.o -c font20.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o font24.o -c font24.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o font8.o -c font8.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o paper.o -c paper.c
riscv64-unknown-linux-musl-gcc -mcpu=c906fdv -march=rv64imafdcv0p7xthead -mcmodel=medany -mabi=lp64d -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../include/system -I/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/include -o paper ImageData.o font12.o font16.o font20.o font24.o font8.o paper.o -L/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../libs/system/musl_riscv64 -L/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/lib -L/home/knifefire/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/../../../../venv/sysroot/usr/lib -lwiringx
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* |验证结果
检查生成的二进制文件：
file paper
正常情况下，终端会看到类似如下输出：
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* file paper
paper: ELF 64-bit LSB executable, UCB RISC-V, RVC, double-float ABI, version 1 (SYSV), dynamically linked, interpreter /lib/ld-musl-riscv64v0p7_xthead.so.1, with debug_info, not stripped
«Ruyi venv» λ ~/tmp/Pico-ePaper-2.13/Pico-ePaper-2.13/c/ main* 5. 显示字符
- 以字符大小为
Font16为例:

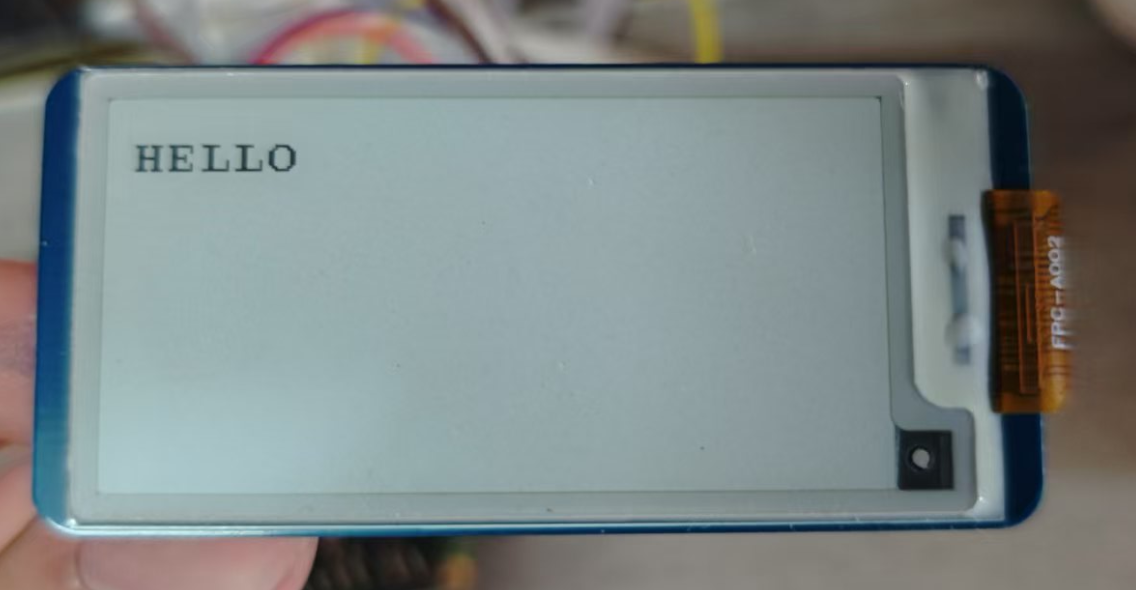

在main函数中调用Paint_DrawString_EN(5, 10, "HELLO", &Font16, WHITE, BLACK); ，便可以顶格显示字符 HELLO 。
./paper
