第10章 实验指导书：SLAM 建图与定位
当前仓库仿真验证：slam_toolbox 在线建图
实验目标
使用当前 ROS 2 Jazzy + Gazebo Harmonic 入口，验证激光、里程计、TF 输入经过 slam_toolbox 后产生地图更新，并用检查节点给机器人发送可重复运动。
运行步骤
source /opt/ros/jazzy/setup.bash
source install/setup.bash
# 终端 1：Gazebo + slam_toolbox + RViz
ros2 launch slam_sim_demo_ros2 slam_demo.launch.py \
use_gazebo:=true use_rviz:=true gz_headless:=false# 终端 2：运动并检查地图增长
source install/setup.bash
ros2 run slam_sim_demo_ros2 slam_map_runner
ros2 topic echo /map --once观察与验收

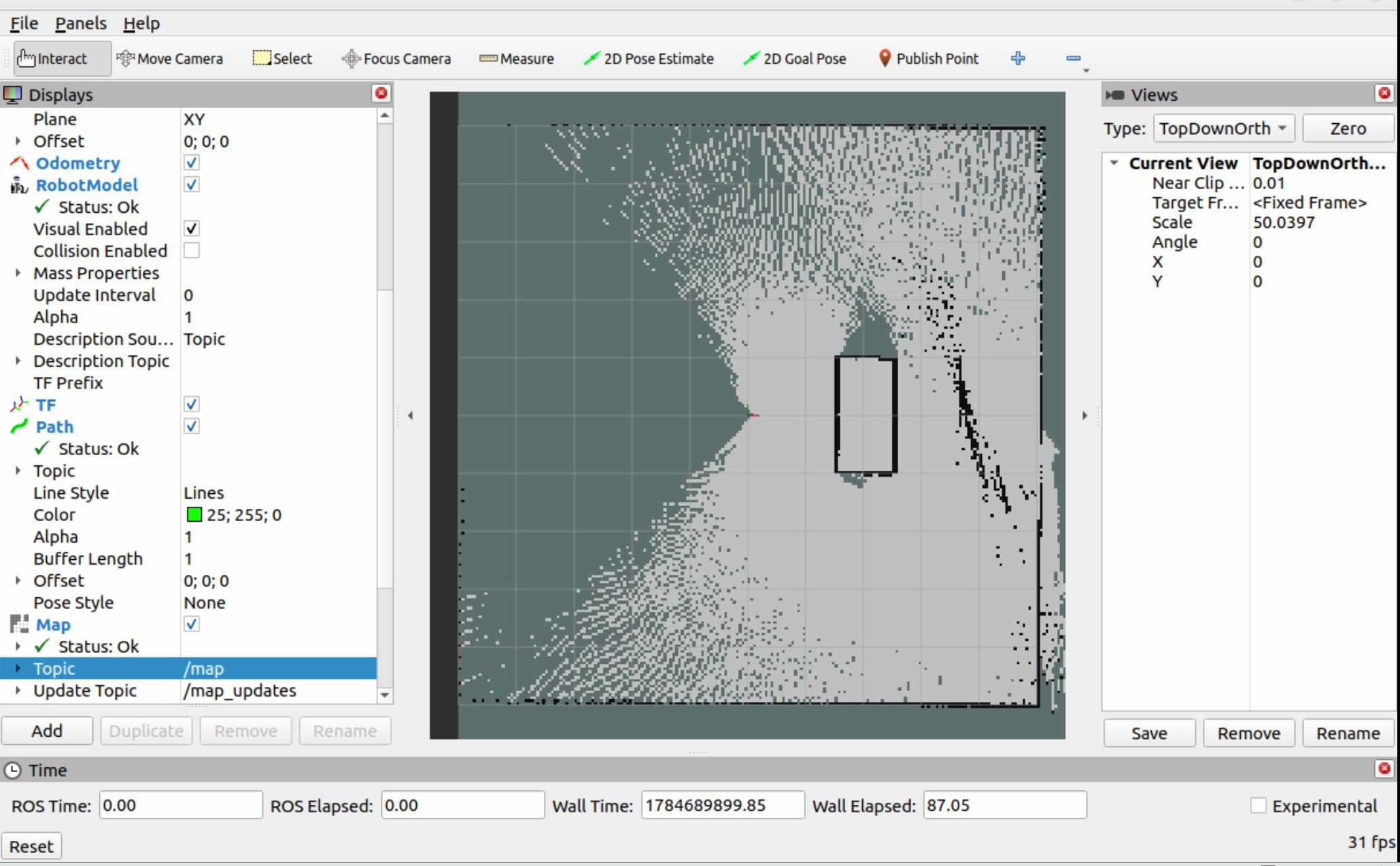

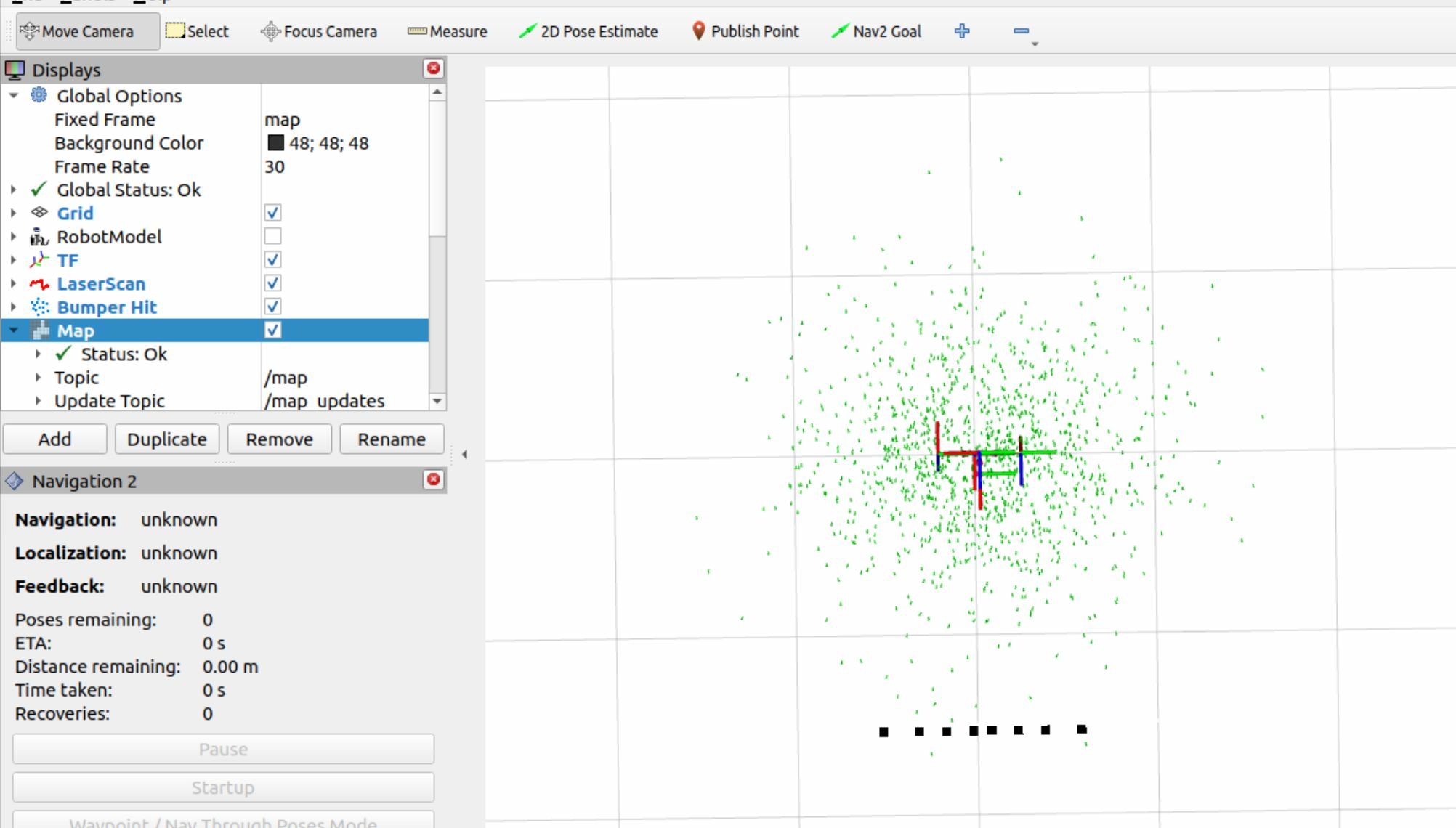

RViz 中添加 Map、LaserScan、TF；终端检查 map_updates、known_cell_growth、odom_distance 和 scan_updates，成功时输出 slam-map-updated。
源码：src/slam_sim_demo_ros2/。启动日志证据：images/runtime/nonlab_slam.png。本节验证的是 slam_toolbox，不把它的结果标为 Hector、gmapping 或 Cartographer 结果。

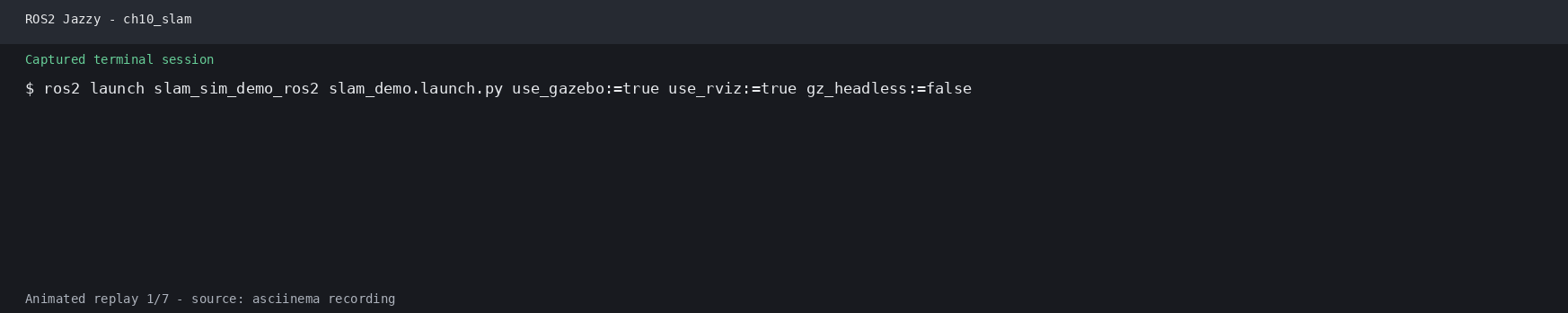

实际运行证据

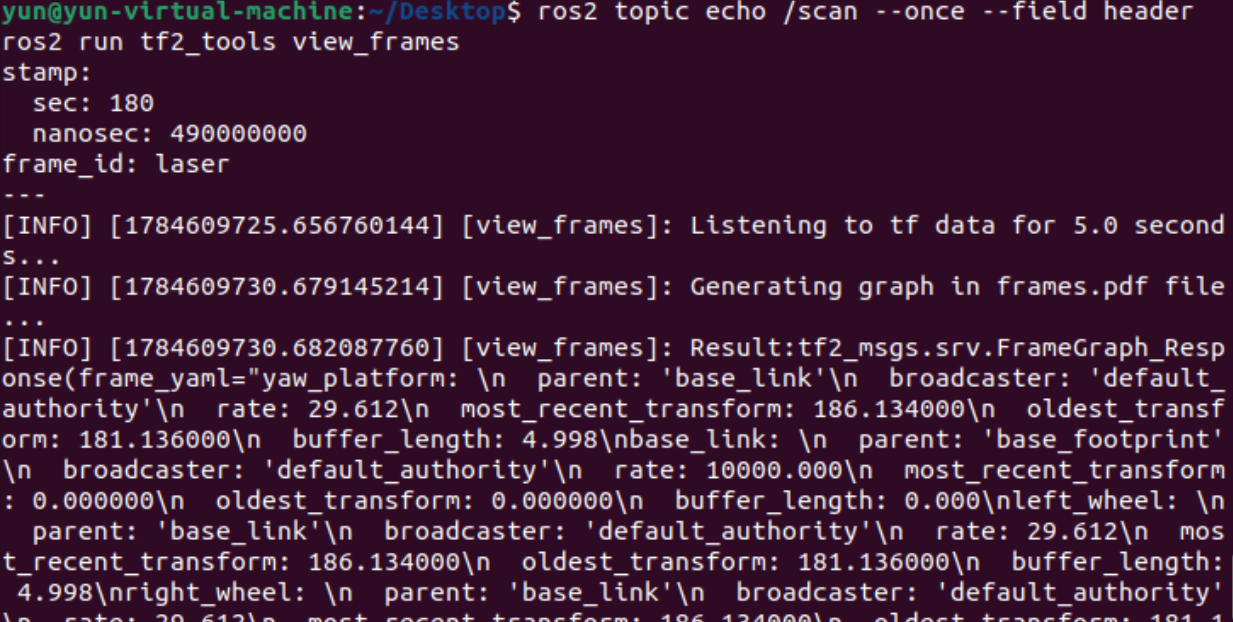

真实运行的 slam_toolbox、传感器话题和地图更新检查输出：
原始录制：ch10_slam.cast。
实验平台：Ubuntu 22.04 + ROS 2 Humble + Gazebo 仿真
预计时间：2 课时（90 分钟）
实验准备：创建 slam_lab 功能包
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 pkg prefix robot_sim_demo_ros2
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py --show-args安装全部依赖
source /opt/ros/humble/setup.bash
sudo apt update
sudo apt install -y \
python3-colcon-common-extensions \
python3-rosdep \
python3-setuptools \
ros-humble-slam-toolbox \
ros-humble-navigation2 \
ros-humble-nav2-bringup \
ros-humble-nav2-map-server \
ros-humble-rosbag2 \
ros-humble-cartographer \
ros-humble-cartographer-ros \
ros-humble-teleop-twist-keyboard \
ros-humble-tf2-geometry-msgs \
ros-humble-tf2-tools
sudo rosdep init 2>/dev/null || true
rosdep update创建目录
source /opt/ros/humble/setup.bash
mkdir -p ~/ros2_course_ws/src
cd ~/ros2_course_ws/src
ros2 pkg create slam_lab \
--build-type ament_python \
--license Apache-2.0
cd ~/ros2_course_ws/src/slam_lab
mkdir -p launch config/cartographer
touch resource/slam_lab slam_lab/__init__.py
mkdir -p ~/maps ~/bags ~/lab10最终目录必须是：
slam_lab/
├── package.xml
├── setup.py
├── setup.cfg
├── resource/
│ └── slam_lab
├── slam_lab/
│ ├── __init__.py
│ ├── slam_monitor.py
│ ├── initial_pose_setter.py
│ ├── amcl_evaluator.py
│ └── cartographer_state_saver.py
├── launch/
│ ├── online_mapping.launch.py
│ ├── amcl_localization.launch.py
│ └── cartographer_mapping.launch.py
└── config/
├── mapper_params_online_async.yaml
├── nav2_localization.yaml
└── cartographer/
├── xbot_2d.lua
└── Cartographer 官方基础 Lua 文件package.xml
文件路径：~/ros2_course_ws/src/slam_lab/package.xml
<?xml version="1.0"?>
<?xml-model href="http://download.ros.org/schema/package_format3.xsd"
schematypens="http://www.w3.org/2001/XMLSchema"?>
<package format="3">
<name>slam_lab</name>
<version>0.1.0</version>
<description>SLAM, AMCL and Cartographer laboratory helpers</description>
<maintainer email="student@example.com">Student</maintainer>
<license>Apache-2.0</license>
<buildtool_depend>ament_python</buildtool_depend>
<exec_depend>ament_index_python</exec_depend>
<exec_depend>cartographer_ros</exec_depend>
<exec_depend>cartographer_ros_msgs</exec_depend>
<exec_depend>geometry_msgs</exec_depend>
<exec_depend>launch</exec_depend>
<exec_depend>launch_ros</exec_depend>
<exec_depend>nav2_bringup</exec_depend>
<exec_depend>nav2_map_server</exec_depend>
<exec_depend>nav_msgs</exec_depend>
<exec_depend>rclpy</exec_depend>
<exec_depend>rviz2</exec_depend>
<exec_depend>slam_toolbox</exec_depend>
<exec_depend>tf2_geometry_msgs</exec_depend>
<exec_depend>tf2_ros</exec_depend>
<export>
<build_type>ament_python</build_type>
</export>
</package>setup.py
文件路径：~/ros2_course_ws/src/slam_lab/setup.py
import os
from glob import glob
from setuptools import find_packages, setup
package_name = 'slam_lab'
setup(
name=package_name,
version='0.1.0',
packages=find_packages(exclude=['test']),
data_files=[
(
'share/ament_index/resource_index/packages',
['resource/' + package_name],
),
('share/' + package_name, ['package.xml']),
(
os.path.join('share', package_name, 'launch'),
glob('launch/*.launch.py'),
),
(
os.path.join('share', package_name, 'config'),
glob('config/*.yaml'),
),
(
os.path.join('share', package_name, 'config', 'cartographer'),
glob('config/cartographer/*.lua'),
),
],
install_requires=['setuptools'],
zip_safe=True,
maintainer='Student',
maintainer_email='student@example.com',
description='SLAM, AMCL and Cartographer laboratory helpers',
license='Apache-2.0',
entry_points={
'console_scripts': [
'slam_monitor = slam_lab.slam_monitor:main',
'set_initial_pose = slam_lab.initial_pose_setter:main',
'amcl_evaluator = slam_lab.amcl_evaluator:main',
'save_cartographer_state = slam_lab.cartographer_state_saver:main',
],
},
)setup.cfg
文件路径：~/ros2_course_ws/src/slam_lab/setup.cfg
[develop]
script_dir=$base/lib/slam_lab
[install]
install_scripts=$base/lib/slam_lab两个空文件
~/ros2_course_ws/src/slam_lab/resource/slam_lab
~/ros2_course_ws/src/slam_lab/slam_lab/__init__.pyslam_monitor.py

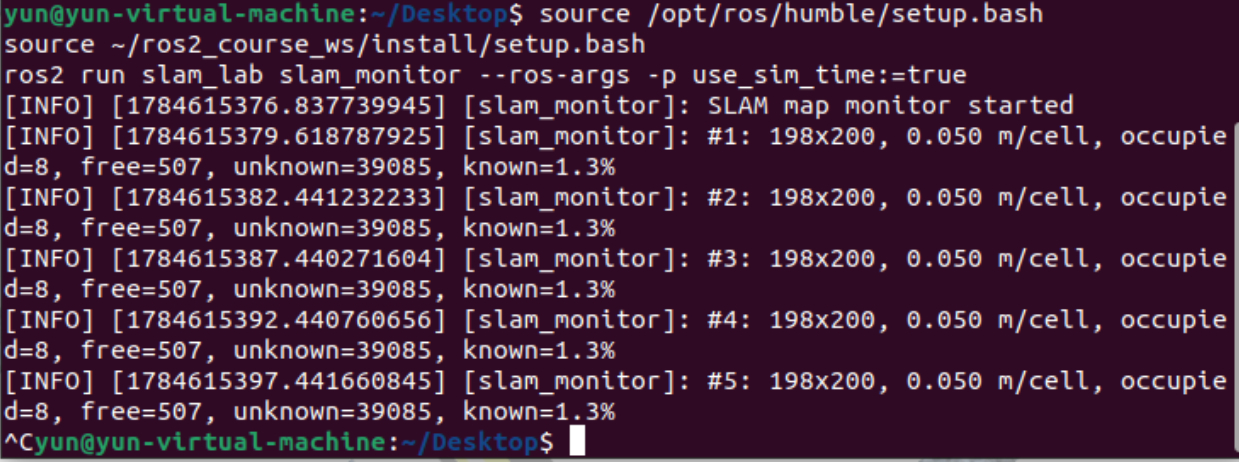

文件路径：~/ros2_course_ws/src/slam_lab/slam_lab/slam_monitor.py
#!/usr/bin/env python3
"""Print basic statistics for the current slam_toolbox map."""
import rclpy
from nav_msgs.msg import OccupancyGrid
from rclpy.node import Node
from rclpy.qos import DurabilityPolicy, QoSProfile, ReliabilityPolicy
class SlamMonitor(Node):
def __init__(self):
super().__init__('slam_monitor')
map_qos = QoSProfile(
depth=1,
reliability=ReliabilityPolicy.RELIABLE,
durability=DurabilityPolicy.TRANSIENT_LOCAL,
)
self.map_sub = self.create_subscription(
OccupancyGrid,
'/map',
self.map_callback,
map_qos,
)
self.map_count = 0
self.get_logger().info('SLAM map monitor started')
def map_callback(self, msg: OccupancyGrid):
self.map_count += 1
occupied = sum(value >= 65 for value in msg.data)
unknown = sum(value < 0 for value in msg.data)
total = len(msg.data)
known = total - unknown
free = known - occupied
known_ratio = known / total * 100.0 if total else 0.0
self.get_logger().info(
f'#{self.map_count}: {msg.info.width}x{msg.info.height}, '
f'{msg.info.resolution:.3f} m/cell, '
f'occupied={occupied}, free={free}, unknown={unknown}, '
f'known={known_ratio:.1f}%'
)
def main(args=None):
rclpy.init(args=args)
node = SlamMonitor()
try:
rclpy.spin(node)
except KeyboardInterrupt:
pass
finally:
node.destroy_node()
if rclpy.ok():
rclpy.shutdown()
if __name__ == '__main__':
main()initial_pose_setter.py
文件路径：~/ros2_course_ws/src/slam_lab/slam_lab/initial_pose_setter.py
#!/usr/bin/env python3
"""Publish an AMCL initial pose from x, y and yaw command-line values."""
import argparse
import math
import sys
import time
import rclpy
from geometry_msgs.msg import PoseWithCovarianceStamped
from rclpy.node import Node
from rclpy.utilities import remove_ros_args
def make_message(node: Node, x: float, y: float, yaw: float):
message = PoseWithCovarianceStamped()
message.header.frame_id = 'map'
message.header.stamp = node.get_clock().now().to_msg()
message.pose.pose.position.x = x
message.pose.pose.position.y = y
message.pose.pose.orientation.z = math.sin(yaw / 2.0)
message.pose.pose.orientation.w = math.cos(yaw / 2.0)
message.pose.covariance[0] = 0.25
message.pose.covariance[7] = 0.25
message.pose.covariance[35] = 0.0685
return message
def parse_arguments(raw_args):
parser = argparse.ArgumentParser()
parser.add_argument('x', type=float)
parser.add_argument('y', type=float)
parser.add_argument('yaw_deg', type=float)
return parser.parse_args(remove_ros_args(raw_args)[1:])
def main():
raw_args = sys.argv
parsed = parse_arguments(raw_args)
rclpy.init(args=raw_args)
node = Node('initial_pose_setter')
publisher = node.create_publisher(
PoseWithCovarianceStamped,
'/initialpose',
10,
)
deadline = time.monotonic() + 3.0
while publisher.get_subscription_count() == 0 and time.monotonic() < deadline:
rclpy.spin_once(node, timeout_sec=0.1)
if publisher.get_subscription_count() == 0:
node.get_logger().warn(
'No /initialpose subscriber found; check whether AMCL is active'
)
yaw = math.radians(parsed.yaw_deg)
for _ in range(3):
publisher.publish(make_message(node, parsed.x, parsed.y, yaw))
rclpy.spin_once(node, timeout_sec=0.2)
node.get_logger().info(
f'Published initial pose: x={parsed.x:.2f}, y={parsed.y:.2f}, '
f'yaw={parsed.yaw_deg:.1f} deg'
)
node.destroy_node()
if rclpy.ok():
rclpy.shutdown()
if __name__ == '__main__':
main()amcl_evaluator.py
文件路径：~/ros2_course_ws/src/slam_lab/slam_lab/amcl_evaluator.py
#!/usr/bin/env python3
"""Compare AMCL and simulator ground-truth poses in one TF frame."""
import math
import rclpy
import tf2_geometry_msgs # Registers geometry message conversions with tf2.
from geometry_msgs.msg import PoseStamped, PoseWithCovarianceStamped
from nav_msgs.msg import Odometry
from rclpy.duration import Duration
from rclpy.node import Node
from tf2_ros import Buffer, TransformException, TransformListener
def yaw_from_pose(pose):
q = pose.orientation
return math.atan2(
2.0 * (q.w * q.z + q.x * q.y),
1.0 - 2.0 * (q.y * q.y + q.z * q.z),
)
class AmclEvaluator(Node):
def __init__(self):
super().__init__('amcl_evaluator')
self.declare_parameter('ground_truth_topic', '/ground_truth/odom')
self.declare_parameter('target_frame', 'map')
ground_truth_topic = self.get_parameter('ground_truth_topic').value
self.target_frame = self.get_parameter('target_frame').value
self.amcl_message = None
self.ground_truth_message = None
self.tf_buffer = Buffer()
self.tf_listener = TransformListener(self.tf_buffer, self)
self.amcl_sub = self.create_subscription(
PoseWithCovarianceStamped,
'/amcl_pose',
self.amcl_callback,
10,
)
self.ground_truth_sub = self.create_subscription(
Odometry,
ground_truth_topic,
self.ground_truth_callback,
10,
)
self.timer = self.create_timer(1.0, self.evaluate)
self.get_logger().info(
f'Comparing /amcl_pose with {ground_truth_topic} in '
f'{self.target_frame}'
)
def amcl_callback(self, msg):
self.amcl_message = msg
def ground_truth_callback(self, msg):
self.ground_truth_message = msg
def transform_pose(self, header, pose):
stamped = PoseStamped()
stamped.header = header
stamped.pose = pose
return self.tf_buffer.transform(
stamped,
self.target_frame,
timeout=Duration(seconds=0.2),
)
def evaluate(self):
if self.amcl_message is None or self.ground_truth_message is None:
return
try:
amcl_pose = self.transform_pose(
self.amcl_message.header,
self.amcl_message.pose.pose,
)
ground_truth_pose = self.transform_pose(
self.ground_truth_message.header,
self.ground_truth_message.pose.pose,
)
except TransformException as error:
self.get_logger().warn(f'Cannot transform poses: {error}')
return
dx = amcl_pose.pose.position.x - ground_truth_pose.pose.position.x
dy = amcl_pose.pose.position.y - ground_truth_pose.pose.position.y
position_error = math.hypot(dx, dy)
yaw_error = yaw_from_pose(amcl_pose.pose) - yaw_from_pose(
ground_truth_pose.pose
)
yaw_error = math.atan2(math.sin(yaw_error), math.cos(yaw_error))
self.get_logger().info(
f'position_error={position_error:.3f} m, '
f'yaw_error={math.degrees(abs(yaw_error)):.2f} deg'
)
def main(args=None):
rclpy.init(args=args)
node = AmclEvaluator()
try:
rclpy.spin(node)
except KeyboardInterrupt:
pass
finally:
node.destroy_node()
if rclpy.ok():
rclpy.shutdown()
if __name__ == '__main__':
main()cartographer_state_saver.py
文件路径：~/ros2_course_ws/src/slam_lab/slam_lab/cartographer_state_saver.py
#!/usr/bin/env python3
"""Finish one Cartographer trajectory and save its pbstream state."""
import argparse
from pathlib import Path
import sys
from cartographer_ros_msgs.srv import FinishTrajectory, WriteState
import rclpy
from rclpy.node import Node
from rclpy.utilities import remove_ros_args
class CartographerStateSaver(Node):
def __init__(self):
super().__init__('cartographer_state_saver')
self.finish_client = self.create_client(
FinishTrajectory,
'/finish_trajectory',
)
self.write_client = self.create_client(WriteState, '/write_state')
def wait_for_services(self):
if not self.finish_client.wait_for_service(timeout_sec=10.0):
self.get_logger().error('/finish_trajectory is unavailable')
return False
if not self.write_client.wait_for_service(timeout_sec=10.0):
self.get_logger().error('/write_state is unavailable')
return False
return True
def finish_trajectory(self, trajectory_id):
request = FinishTrajectory.Request()
request.trajectory_id = trajectory_id
future = self.finish_client.call_async(request)
rclpy.spin_until_future_complete(self, future, timeout_sec=30.0)
if not future.done() or future.result() is None:
self.get_logger().error('Failed to finish trajectory')
return False
status = getattr(future.result(), 'status', None)
if status is not None and status.code != 0:
self.get_logger().error(f'Finish failed: {status.message}')
return False
return True
def write_state(self, filename):
request = WriteState.Request()
request.filename = str(filename)
request.include_unfinished_submaps = True
future = self.write_client.call_async(request)
rclpy.spin_until_future_complete(self, future, timeout_sec=30.0)
if not future.done() or future.result() is None:
self.get_logger().error('Failed to write Cartographer state')
return False
status = getattr(future.result(), 'status', None)
if status is not None and status.code != 0:
self.get_logger().error(f'Write failed: {status.message}')
return False
return True
def parse_arguments(raw_args):
parser = argparse.ArgumentParser()
parser.add_argument('trajectory_id', type=int)
parser.add_argument('output_file')
return parser.parse_args(remove_ros_args(raw_args)[1:])
def main():
raw_args = sys.argv
parsed = parse_arguments(raw_args)
output_file = Path(parsed.output_file).expanduser().resolve()
output_file.parent.mkdir(parents=True, exist_ok=True)
rclpy.init(args=raw_args)
node = CartographerStateSaver()
try:
if not node.wait_for_services():
return
if not node.finish_trajectory(parsed.trajectory_id):
return
if node.write_state(output_file):
node.get_logger().info(f'Saved Cartographer state: {output_file}')
finally:
node.destroy_node()
if rclpy.ok():
rclpy.shutdown()
if __name__ == '__main__':
main()online_mapping.launch.py
文件路径：~/ros2_course_ws/src/slam_lab/launch/online_mapping.launch.py
#!/usr/bin/env python3
import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription
from launch.conditions import IfCondition
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node
def generate_launch_description():
package_share = get_package_share_directory('slam_lab')
slam_toolbox_share = get_package_share_directory('slam_toolbox')
use_sim_time = LaunchConfiguration('use_sim_time')
params_file = LaunchConfiguration('params_file')
start_monitor = LaunchConfiguration('start_monitor')
slam_launch = IncludeLaunchDescription(
PythonLaunchDescriptionSource(
os.path.join(
slam_toolbox_share,
'launch',
'online_async_launch.py',
)
),
launch_arguments={
'slam_params_file': params_file,
'use_sim_time': use_sim_time,
}.items(),
)
monitor_node = Node(
package='slam_lab',
executable='slam_monitor',
name='slam_monitor',
output='screen',
parameters=[{'use_sim_time': use_sim_time}],
condition=IfCondition(start_monitor),
)
return LaunchDescription([
DeclareLaunchArgument(
'use_sim_time',
default_value='true',
description='Use the Gazebo /clock topic',
),
DeclareLaunchArgument(
'params_file',
default_value=os.path.join(
package_share,
'config',
'mapper_params_online_async.yaml',
),
description='Absolute path to the slam_toolbox parameter file',
),
DeclareLaunchArgument(
'start_monitor',
default_value='true',
description='Start the map statistics node',
),
slam_launch,
monitor_node,
])amcl_localization.launch.py
文件路径：~/ros2_course_ws/src/slam_lab/launch/amcl_localization.launch.py
#!/usr/bin/env python3
import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription
from launch.conditions import IfCondition
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration
def generate_launch_description():
package_share = get_package_share_directory('slam_lab')
nav2_share = get_package_share_directory('nav2_bringup')
map_file = LaunchConfiguration('map')
params_file = LaunchConfiguration('params_file')
use_sim_time = LaunchConfiguration('use_sim_time')
autostart = LaunchConfiguration('autostart')
use_rviz = LaunchConfiguration('use_rviz')
localization = IncludeLaunchDescription(
PythonLaunchDescriptionSource(
os.path.join(nav2_share, 'launch', 'localization_launch.py')
),
launch_arguments={
'map': map_file,
'params_file': params_file,
'use_sim_time': use_sim_time,
'autostart': autostart,
}.items(),
)
rviz = IncludeLaunchDescription(
PythonLaunchDescriptionSource(
os.path.join(nav2_share, 'launch', 'rviz_launch.py')
),
launch_arguments={'use_sim_time': use_sim_time}.items(),
condition=IfCondition(use_rviz),
)
return LaunchDescription([
DeclareLaunchArgument(
'map',
default_value=os.path.expanduser('~/maps/lab10_map.yaml'),
description='Absolute path to the saved map YAML file',
),
DeclareLaunchArgument(
'params_file',
default_value=os.path.join(
package_share,
'config',
'nav2_localization.yaml',
),
description='Absolute path to the Nav2 localization parameters',
),
DeclareLaunchArgument('use_sim_time', default_value='true'),
DeclareLaunchArgument('autostart', default_value='true'),
DeclareLaunchArgument('use_rviz', default_value='true'),
localization,
rviz,
])cartographer_mapping.launch.py
文件路径：~/ros2_course_ws/src/slam_lab/launch/cartographer_mapping.launch.py
#!/usr/bin/env python3
import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node
def generate_launch_description():
package_share = get_package_share_directory('slam_lab')
configuration_directory = LaunchConfiguration('configuration_directory')
configuration_basename = LaunchConfiguration('configuration_basename')
scan_topic = LaunchConfiguration('scan_topic')
odom_topic = LaunchConfiguration('odom_topic')
resolution = LaunchConfiguration('resolution')
use_sim_time = LaunchConfiguration('use_sim_time')
cartographer_node = Node(
package='cartographer_ros',
executable='cartographer_node',
name='cartographer_node',
output='screen',
arguments=[
'-configuration_directory',
configuration_directory,
'-configuration_basename',
configuration_basename,
],
parameters=[{'use_sim_time': use_sim_time}],
remappings=[
('scan', scan_topic),
('odom', odom_topic),
],
)
occupancy_grid_node = Node(
package='cartographer_ros',
executable='cartographer_occupancy_grid_node',
name='cartographer_occupancy_grid_node',
output='screen',
arguments=[
'-resolution',
resolution,
'-publish_period_sec',
'1.0',
],
parameters=[{'use_sim_time': use_sim_time}],
)
return LaunchDescription([
DeclareLaunchArgument(
'configuration_directory',
default_value=os.path.join(
package_share,
'config',
'cartographer',
),
),
DeclareLaunchArgument(
'configuration_basename',
default_value='xbot_2d.lua',
),
DeclareLaunchArgument('scan_topic', default_value='/scan'),
DeclareLaunchArgument('odom_topic', default_value='/odom'),
DeclareLaunchArgument('resolution', default_value='0.05'),
DeclareLaunchArgument('use_sim_time', default_value='true'),
cartographer_node,
occupancy_grid_node,
])mapper_params_online_async.yaml
文件路径：~/ros2_course_ws/src/slam_lab/config/mapper_params_online_async.yaml
slam_toolbox:
ros__parameters:
solver_plugin: solver_plugins::CeresSolver
ceres_linear_solver: SPARSE_NORMAL_CHOLESKY
ceres_preconditioner: SCHUR_JACOBI
ceres_trust_strategy: LEVENBERG_MARQUARDT
ceres_dogleg_type: TRADITIONAL_DOGLEG
ceres_loss_function: None
odom_frame: odom
map_frame: map
base_frame: base_link
scan_topic: /scan
use_map_saver: true
mode: mapping
debug_logging: false
throttle_scans: 1
transform_publish_period: 0.02
map_update_interval: 5.0
resolution: 0.05
max_laser_range: 12.0
minimum_time_interval: 0.5
transform_timeout: 0.2
tf_buffer_duration: 30.0
stack_size_to_use: 40000000
enable_interactive_mode: true
use_scan_matching: true
use_scan_barycenter: true
minimum_travel_distance: 0.2
minimum_travel_heading: 0.2
scan_buffer_size: 10
scan_buffer_maximum_scan_distance: 10.0
link_match_minimum_response_fine: 0.1
link_scan_maximum_distance: 1.5
loop_search_maximum_distance: 3.0
do_loop_closing: true
loop_match_minimum_chain_size: 10
loop_match_maximum_variance_coarse: 3.0
loop_match_minimum_response_coarse: 0.35
loop_match_minimum_response_fine: 0.45
correlation_search_space_dimension: 0.5
correlation_search_space_resolution: 0.01
correlation_search_space_smear_deviation: 0.1
loop_search_space_dimension: 8.0
loop_search_space_resolution: 0.05
loop_search_space_smear_deviation: 0.03
distance_variance_penalty: 0.5
angle_variance_penalty: 1.0
fine_search_angle_offset: 0.00349
coarse_search_angle_offset: 0.349
coarse_angle_resolution: 0.0349
minimum_angle_penalty: 0.9
minimum_distance_penalty: 0.5
use_response_expansion: truenav2_localization.yaml
文件路径：~/ros2_course_ws/src/slam_lab/config/nav2_localization.yaml
amcl:
ros__parameters:
use_sim_time: true
alpha1: 0.2
alpha2: 0.2
alpha3: 0.2
alpha4: 0.2
alpha5: 0.2
base_frame_id: base_link
beam_skip_distance: 0.5
beam_skip_error_threshold: 0.9
beam_skip_threshold: 0.3
do_beamskip: false
global_frame_id: map
lambda_short: 0.1
laser_likelihood_max_dist: 2.0
laser_max_range: 12.0
laser_min_range: 0.15
laser_model_type: likelihood_field
max_beams: 60
max_particles: 2000
min_particles: 500
odom_frame_id: odom
pf_err: 0.05
pf_z: 0.99
recovery_alpha_fast: 0.0
recovery_alpha_slow: 0.0
resample_interval: 1
robot_model_type: nav2_amcl::DifferentialMotionModel
save_pose_rate: 0.5
sigma_hit: 0.2
tf_broadcast: true
transform_tolerance: 1.0
update_min_a: 0.2
update_min_d: 0.25
z_hit: 0.5
z_max: 0.05
z_rand: 0.5
z_short: 0.05
scan_topic: scan
set_initial_pose: false
always_reset_initial_pose: false
first_map_only: false
map_server:
ros__parameters:
use_sim_time: true
yaml_filename: ''
topic_name: map
frame_id: map
lifecycle_manager_localization:
ros__parameters:
use_sim_time: true
autostart: true
node_names: [map_server, amcl]
bond_timeout: 4.0xbot_2d.lua
文件路径：~/ros2_course_ws/src/slam_lab/config/cartographer/xbot_2d.lua
Cartographer 的 map_builder.lua、trajectory_builder.lua 及其依赖文件属于已安装的 Cartographer 软件包，不是本实验重新编写的代码。先复制官方基础文件，再创建下面这个完整的机器人配置：
cd ~/ros2_course_ws/src/slam_lab
CARTO_CONFIG="$(ros2 pkg prefix cartographer_ros)/share/cartographer_ros/configuration_files"
cp "$CARTO_CONFIG"/*.lua config/cartographer/
nano config/cartographer/xbot_2d.luainclude "map_builder.lua"
include "trajectory_builder.lua"
options = {
map_builder = MAP_BUILDER,
trajectory_builder = TRAJECTORY_BUILDER,
map_frame = "map",
tracking_frame = "base_link",
published_frame = "odom",
odom_frame = "odom",
provide_odom_frame = false,
publish_frame_projected_to_2d = true,
use_odometry = true,
use_nav_sat = false,
use_landmarks = false,
num_laser_scans = 1,
num_multi_echo_laser_scans = 0,
num_subdivisions_per_laser_scan = 1,
num_point_clouds = 0,
lookup_transform_timeout_sec = 0.2,
submap_publish_period_sec = 0.3,
pose_publish_period_sec = 0.005,
trajectory_publish_period_sec = 0.03,
rangefinder_sampling_ratio = 1.0,
odometry_sampling_ratio = 1.0,
fixed_frame_pose_sampling_ratio = 1.0,
imu_sampling_ratio = 1.0,
landmarks_sampling_ratio = 1.0,
}
MAP_BUILDER.use_trajectory_builder_2d = true
TRAJECTORY_BUILDER_2D.use_imu_data = false
TRAJECTORY_BUILDER_2D.min_range = 0.15
TRAJECTORY_BUILDER_2D.max_range = 12.0
TRAJECTORY_BUILDER_2D.missing_data_ray_length = 5.0
TRAJECTORY_BUILDER_2D.num_accumulated_range_data = 1
POSE_GRAPH.optimize_every_n_nodes = 90
POSE_GRAPH.constraint_builder.sampling_ratio = 0.3
POSE_GRAPH.constraint_builder.min_score = 0.55
return options编译完整功能包
Cartographer 官方 Lua 基础文件必须已经复制到 config/cartographer/，否则 include 无法解析。然后编译：
cd ~/ros2_course_ws
source /opt/ros/humble/setup.bash
rosdep install --from-paths src/slam_lab --ignore-src -r -y
colcon build --packages-select slam_lab --symlink-install
source install/setup.bash
ros2 pkg prefix slam_lab
ros2 pkg executables slam_lab
ros2 launch slam_lab online_mapping.launch.py --show-args
ros2 launch slam_lab amcl_localization.launch.py --show-args
ros2 launch slam_lab cartographer_mapping.launch.py --show-args每个新终端都执行：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash练习1：slam_toolbox 在线建图（约30分钟）
启动仿真
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py \
use_gazebo:=true \
gz_headless:=false \
use_rviz:=false检查传感器和 TF
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 topic list | grep -E '^/(scan|odom|clock|tf|tf_static)$'
ros2 topic type /scan
ros2 topic echo /scan --once
ros2 topic echo /odom --once

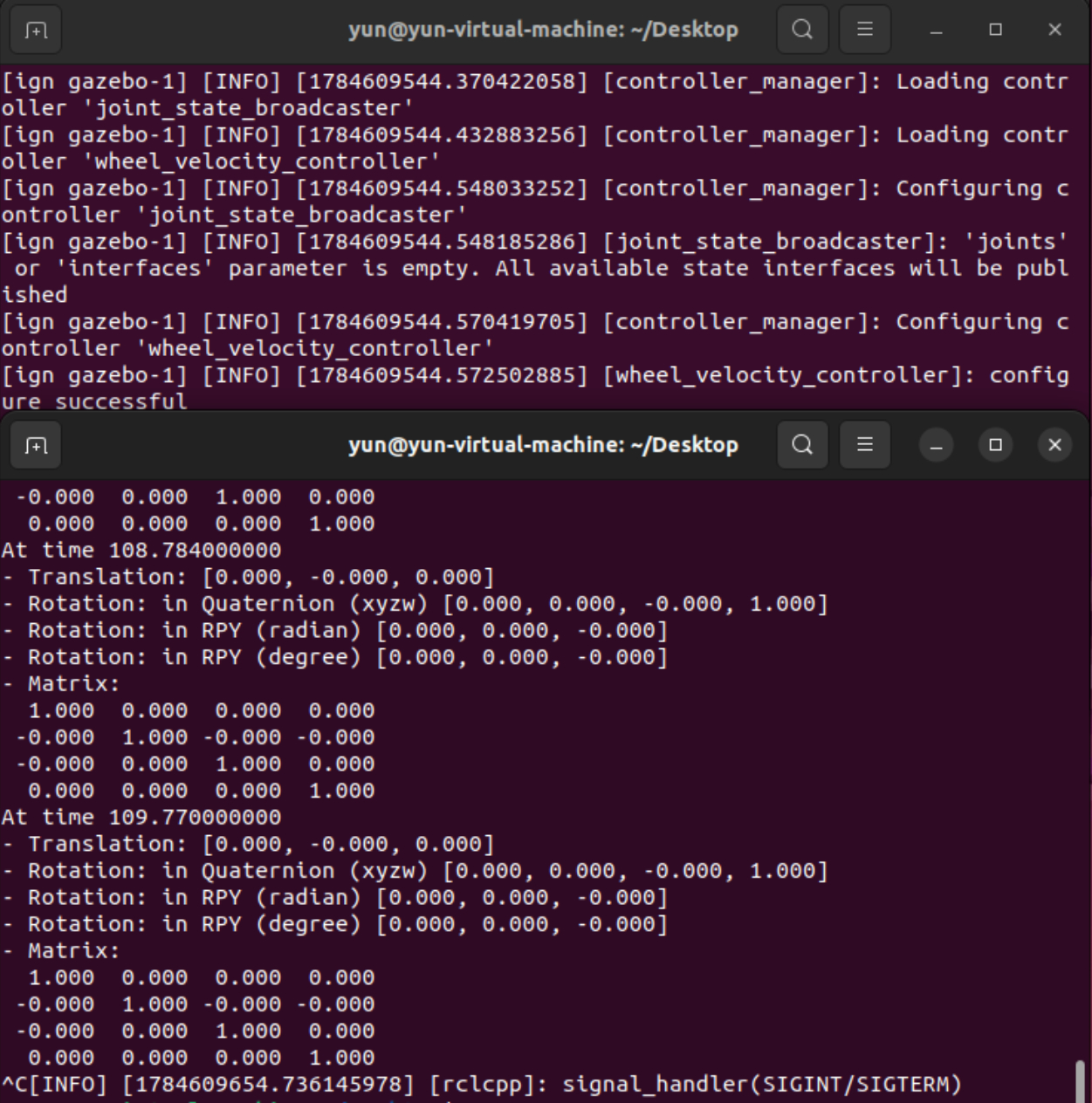

ros2 run tf2_ros tf2_echo odom base_link
ros2 topic echo /scan --once --field header
ros2 run tf2_tools view_frames
slam_toolbox 参数
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
SLAM_LAB_SHARE="$(ros2 pkg prefix slam_lab)/share/slam_lab"
test -f "$SLAM_LAB_SHARE/config/mapper_params_online_async.yaml"
grep -nE 'odom_frame|map_frame|base_frame|scan_topic|mode|resolution|max_laser_range|use_sim_time' \
"$SLAM_LAB_SHARE/config/mapper_params_online_async.yaml"启动在线异步建图
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch slam_lab online_mapping.launch.py \
use_sim_time:=true \
start_monitor:=truesource /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 node list | grep slam
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info
ros2 service list | grep slam_toolbox启动 RViz2
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
rviz2 --ros-args -p use_sim_time:=true在 RViz2 中设置：
Fixed Frame设为map；- 添加
Map，Topic 设为/map； - 添加
LaserScan，Topic 设为/scan； - 添加
TF和RobotModel； - 确认地图、激光扫描和机器人位姿重合。
配置完成后在 RViz2 中保存为 ~/lab10/slam_view.rviz，下次使用：
rviz2 -d ~/lab10/slam_view.rviz --ros-args -p use_sim_time:=true键盘遥控并探索环境
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run teleop_twist_keyboard teleop_twist_keyboard \
--ros-args \
-p speed:=0.3 \
-p turn:=0.8 \检查并保存地图
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run nav2_map_server map_saver_cli \
-t /map \
-f "$HOME/maps/lab10_map" \
--ros-args \
-p use_sim_time:=true \
-p save_map_timeout:=20.0
test -s "$HOME/maps/lab10_map.pgm" && \
test -s "$HOME/maps/lab10_map.yaml" && \
echo '地图文件保存成功'
ls -lh "$HOME/maps/lab10_map.pgm" "$HOME/maps/lab10_map.yaml"可运行的地图监控脚本
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run slam_lab slam_monitor --ros-args -p use_sim_time:=true
练习2：加载地图并使用 AMCL 定位（约30分钟）
停止建图节点并确认地图文件
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
test -s "$HOME/maps/lab10_map.yaml"
test -s "$HOME/maps/lab10_map.pgm"
grep -E '^[[:space:]]*(image|resolution|origin|occupied_thresh|free_thresh):' \
"$HOME/maps/lab10_map.yaml"启动仿真
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py \
use_gazebo:=true \
gz_headless:=false \
use_rviz:=false启动 AMCL 和地图服务器
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch slam_lab amcl_localization.launch.py \
map:=$HOME/maps/lab10_map.yaml \
use_sim_time:=true \
use_rviz:=false \
autostart:=true检查生命周期状态：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 lifecycle get /map_server
ros2 lifecycle get /amcl
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info
启动 RViz2 并设置初始位姿
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
rviz2 -d /opt/ros/humble/share/nav2_bringup/rviz/nav2_default_view.rviz \
--ros-args -p use_sim_time:=true在 RViz2 中：
Fixed Frame设为map；- 确认
Map的 Topic 是/map； - 添加或确认
LaserScan的 Topic 是/scan； - 点击
2D Pose Estimate，在地图中点击机器人位置并拖动箭头指定朝向； - 观察粒子云是否逐渐收敛到机器人附近。
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
# 可以按地图实际位置修改三个数值，yaw 单位为度
ros2 run slam_lab set_initial_pose 0.0 0.0 0.0 \
--ros-args -p use_sim_time:=true验证 AMCL 输出
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 topic echo /amcl_pose --once
ros2 topic echo /particle_cloud --once

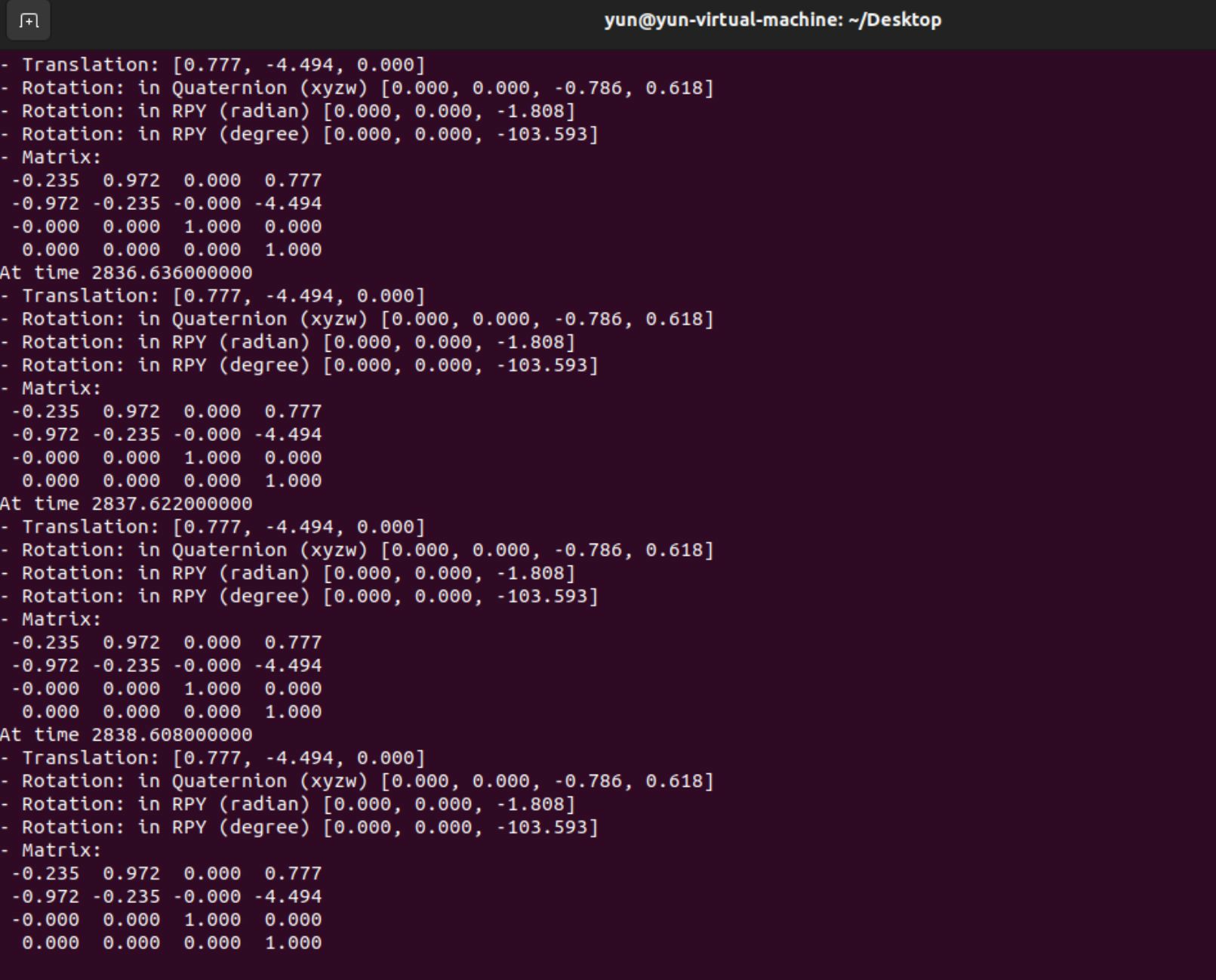

ros2 run tf2_ros tf2_echo map base_link
Nav2 AMCL 的粒子话题是 /particle_cloud。移动机器人后可观察频率：
ros2 topic hz /amcl_pose进行移动和全局重定位测试
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run teleop_twist_keyboard teleop_twist_keyboard \
--ros-args -p speed:=0.2 -p turn:=0.6先在地图中移动到不同区域，再停止机器人并观察 /amcl_pose 是否稳定。要测试全局重定位，先在 RViz2 中给出明显错误的初始位姿，然后执行：

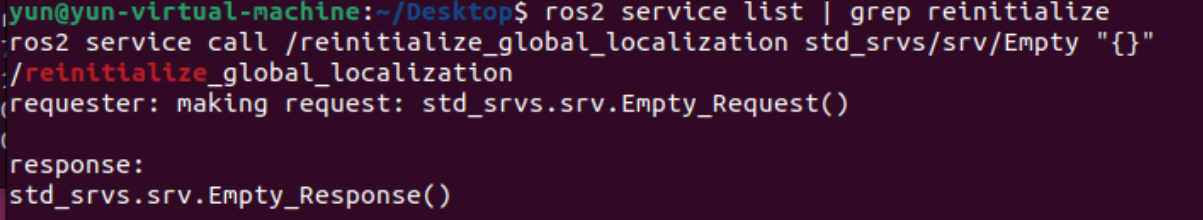

ros2 service list | grep reinitialize
ros2 service call /reinitialize_global_localization std_srvs/srv/Empty "{}"
练习3：Cartographer 2D 建图和地图导出（扩展，约30分钟）
使用
museum.sdf世界文件模拟"两层"地图的两次独立建图流程。
检查 Cartographer 和楼层资源
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 pkg prefix cartographer_ros
ros2 pkg executables cartographer_ros | grep -E 'cartographer_node|occupancy_grid|pbstream'
WORLD_DIR="$(ros2 pkg prefix robot_sim_demo_ros2)/share/robot_sim_demo_ros2/worlds"
ls -lah "$WORLD_DIR"使用现有的 museum.sdf 作为建筑世界：
FLOOR_WORLD="$WORLD_DIR/museum.sdf"
test -f "$FLOOR_WORLD" && echo '博物馆世界文件已找到'Shell 变量只在当前终端有效。后续打开新终端时，需要重新设置 WORLD_DIR 和 FLOOR_WORLD。
创建完整 Lua 配置
完整的 xbot_2d.lua 已在实验准备部分给出，并安装在 slam_lab 中。Cartographer 官方基础 Lua 文件也必须位于同一目录。检查：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
CARTO_LAB_CONFIG="$(ros2 pkg prefix slam_lab)/share/slam_lab/config/cartographer"
test -f "$CARTO_LAB_CONFIG/xbot_2d.lua"
test -f "$CARTO_LAB_CONFIG/map_builder.lua"
test -f "$CARTO_LAB_CONFIG/trajectory_builder.lua"
ls -1 "$CARTO_LAB_CONFIG" | head若任何 test 失败，回到“xbot_2d.lua”和“编译完整功能包”步骤重新复制基础 Lua 并编译。配置中的 provide_odom_frame = false 是因为 XBot-U 仿真已经提供 odom -> base_link；若实际机器人没有这条 TF，应按实际 TF 架构修改。
启动第一轮 Cartographer
先停止练习1或练习2的 SLAM/AMCL 节点。打开终端1启动仿真：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
WORLD_DIR="$(ros2 pkg prefix robot_sim_demo_ros2)/share/robot_sim_demo_ros2/worlds"
FLOOR_WORLD="$WORLD_DIR/museum.sdf"
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py \
world:="$FLOOR_WORLD" \
use_gazebo:=true \
gz_headless:=false \
use_rviz:=false打开终端2，同时启动 Cartographer 和栅格地图节点：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch slam_lab cartographer_mapping.launch.py \
scan_topic:=/scan \
odom_topic:=/odom \
resolution:=0.05 \
use_sim_time:=true打开终端3遥控和终端4 RViz2：
# 终端3
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run teleop_twist_keyboard teleop_twist_keyboard \
--ros-args -p speed:=0.2 -p turn:=0.6 # 终端4
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
rviz2 --ros-args -p use_sim_time:=trueRViz2 的 Fixed Frame 设为 map，添加 /map、/scan 和 TF。确认 Cartographer 的地图在机器人移动时更新。
保存并导出第一轮地图
先查看当前轨迹编号。通常新启动的 Cartographer 轨迹编号为 0，但应以 /submap_list 实际输出为准：
ros2 topic echo /submap_list --once
ros2 service list | grep -E 'finish_trajectory|write_state'建图完成后，在终端5运行实验准备部分完整给出的状态保存节点：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
mkdir -p "$HOME/maps"
ros2 run slam_lab save_cartographer_state \
0 "$HOME/maps/floor1.pbstream"
test -s "$HOME/maps/floor1.pbstream" && echo 'floor1 状态保存成功'该节点依次调用 ROS 2 的 /finish_trajectory 和 /write_state 服务，并检查返回状态。旧版的 rosservice call 是 ROS 1 命令，在 ROS 2 Humble 中不可用。
停止 Cartographer 节点后，将状态转换为 Nav2 可读取的地图：
ros2 run cartographer_ros cartographer_pbstream_to_ros_map \
-pbstream_filename "$HOME/maps/floor1.pbstream" \
-map_filestem "$HOME/maps/floor1_map" \
-resolution 0.05
ls -lh "$HOME/maps/floor1_map.pgm" "$HOME/maps/floor1_map.yaml"3.5 第二轮地图
第二轮必须使用全新的仿真和 Cartographer 进程。先停止第一轮的 Gazebo、Cartographer、occupancy grid 和 teleop，再执行：
# 终端1：重新启动仿真（同一世界，模拟第二层）
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
WORLD_DIR="$(ros2 pkg prefix robot_sim_demo_ros2)/share/robot_sim_demo_ros2/worlds"
FLOOR_WORLD="$WORLD_DIR/museum.sdf"
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py \
world:="$FLOOR_WORLD" \
use_gazebo:=true \
gz_headless:=false \
use_rviz:=false使用与第一轮相同的 Cartographer 和遥控命令，完成探索后保存：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run slam_lab save_cartographer_state \
0 "$HOME/maps/floor2.pbstream"
ros2 run cartographer_ros cartographer_pbstream_to_ros_map \
-pbstream_filename "$HOME/maps/floor2.pbstream" \
-map_filestem "$HOME/maps/floor2_map" \
-resolution 0.05
ls -lh "$HOME/maps/floor2_map.pgm" "$HOME/maps/floor2_map.yaml"练习4：rosbag 回放建图（约15分钟）

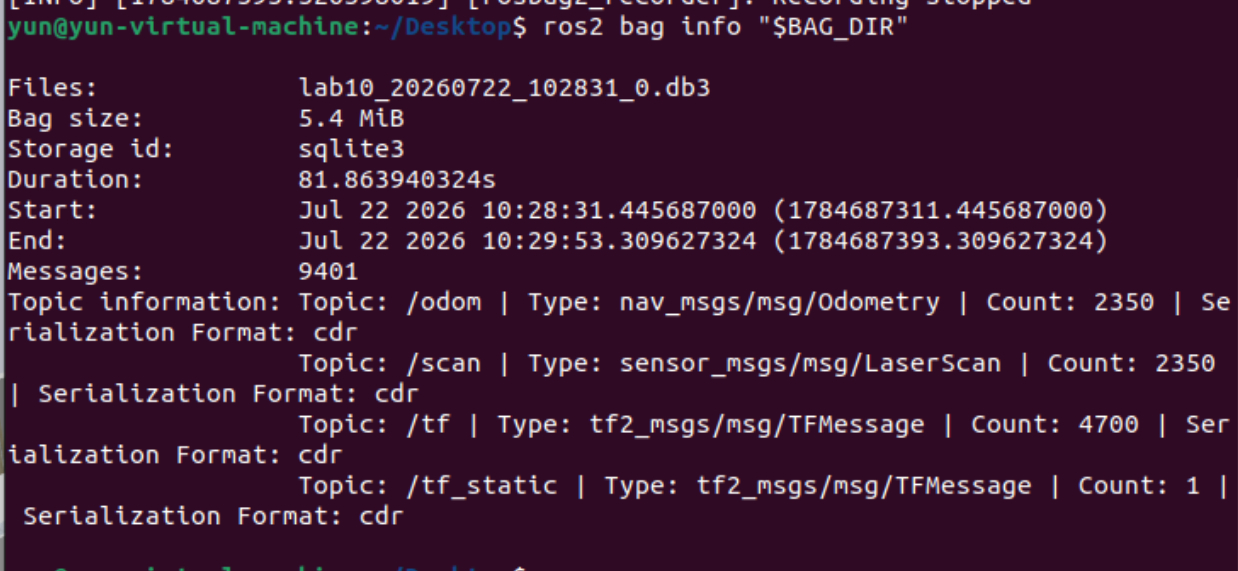

录制建图数据
停止所有 SLAM、AMCL 和 Cartographer 节点。打开终端1重新启动仿真：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 launch robot_sim_demo_ros2 sim_bringup.launch.py \
use_gazebo:=true \
gz_headless:=false \
use_rviz:=false打开终端2，先确认传感器和控制话题已经就绪：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 topic list | grep -E '^/(scan|odom|tf|tf_static|cmd_vel_teleop)$'
ros2 topic info /scan --verbose
ros2 topic info /cmd_vel_teleop --verbose在终端2开始录制：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
mkdir -p "$HOME/bags"
BAG_DIR="$HOME/bags/lab10_$(date +%Y%m%d_%H%M%S)"
printf '%s\n' "$BAG_DIR" | tee "$HOME/bags/latest_bag.txt"
ros2 bag record -o "$BAG_DIR" \
/scan /odom /tf /tf_static看到 All requested topics are subscribed 后保持终端2运行。打开终端3遥控机器人覆盖环境：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 run teleop_twist_keyboard teleop_twist_keyboard \
--ros-args \
-p speed:=0.3 \
-p turn:=0.8 \
-r cmd_vel:=/cmd_vel_teleop/cmd_vel_teleop 会经过 twist_mux -> /cmd_vel -> gazebo_interface_bridge 转换为底层轮速命令。
等待出现 Recording stopped 后检查包内容：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
BAG_DIR="$(cat "$HOME/bags/latest_bag.txt")"
test -d "$BAG_DIR"
ros2 bag info "$BAG_DIR"
回放数据并建图
停止 Gazebo，避免回放期间同时存在两套 /scan、/odom 和 TF 发布者。确认 Gazebo、fake_laser 和控制器节点已经退出，再打开终端1启动同步建图：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 node list | grep -E 'gazebo|fake_laser|controller_manager'
ros2 topic info /scan --verbose
ros2 topic info /odom --verbose节点过滤命令应无输出，/scan 和 /odom 应不存在或显示 Publisher count: 0。然后启动同步建图：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
SLAM_PARAMS="$(ros2 pkg prefix slam_lab)/share/slam_lab/config/mapper_params_online_async.yaml"
ros2 launch slam_toolbox online_sync_launch.py \
slam_params_file:="$SLAM_PARAMS" \
use_sim_time:=true看到 /slam_toolbox 节点后，打开终端2回放：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
BAG_DIR="$(cat "$HOME/bags/latest_bag.txt")"
test -d "$BAG_DIR"
ros2 bag play "$BAG_DIR" --clock --rate 0.5打开终端3运行 RViz2，固定坐标系设为 map，观察地图是否随着回放生成：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
rviz2 --ros-args -p use_sim_time:=true如果练习1已经保存 RViz 配置，也可以运行：
rviz2 -d "$HOME/lab10/slam_view.rviz" \
--ros-args -p use_sim_time:=trueRViz2 的 Fixed Frame 设为 map，添加 /map、/scan 和 TF。当前 VM 可能输出 GLSL 着色器错误，但只要日志持续出现 Trying to create a map 且地图尺寸更新，就不影响建图结果。
回放过程中打开终端4验证数据来源、地图和 TF：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
ros2 node list | grep -E 'rosbag2_player|slam_toolbox'
ros2 topic info /clock --verbose
ros2 topic info /scan --verbose
ros2 topic info /odom --verbose
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info
ros2 run tf2_ros tf2_echo map base_link看到 map -> base_link 连续输出后停止 tf2_echo。/clock、/scan 和 /odom 应各有一个来自 rosbag2_player 的发布者，/map 应由 slam_toolbox 发布。/tf 同时包含 rosbag 回放的里程计 TF 和 slam_toolbox 发布的 map -> odom，因此可能有两个发布者，这是正常现象。偶尔出现一条 Message Filter dropping message ... queue is full 通常是启动瞬间的缓存抖动；如果持续出现，停止回放并把 --rate 0.5 降到 --rate 0.2。
回放结束后保存地图：
source /opt/ros/humble/setup.bash
source ~/ros2_course_ws/install/setup.bash
mkdir -p "$HOME/maps"
ros2 topic info /map --verbose
ros2 run nav2_map_server map_saver_cli \
-t /map \
-f "$HOME/maps/lab10_replayed_map" \
--ros-args \
-p use_sim_time:=true \
-p save_map_timeout:=20.0
test -s "$HOME/maps/lab10_replayed_map.pgm" && \
test -s "$HOME/maps/lab10_replayed_map.yaml" && \
echo '回放地图保存成功'
ls -lh "$HOME/maps/lab10_replayed_map.pgm" \
"$HOME/maps/lab10_replayed_map.yaml"
