第10章实验指导书：SLAM 建图与定位（COM260 Kit）

COM260 运行 C++17 地图监控、初始位姿、定位评估和状态保存客户端；x86 Humble/Harmonic 容器运行 Gazebo、slam_toolbox、Nav2 AMCL、Cartographer 和 RViz。课程内容对应教案第 10～15 章，不能把 slam_toolbox 的结果当成 Hector、gmapping 或 Cartographer 的结果。

先完成第 9 章的双端环境。本章单独使用 ch10 容器；开始前停止第 9 章容器。地图和 bag 保存在 x86 的独立工作区 ~/ros2_course_com260_ch09_ch10_humble_ws/output/，容器内对应 /workspace/output/。

x86 宿主：

cd ~/ROS2_RISCV_COM260_CH09_CH10
bash course_support/k3_com260_kit/scripts/x86-ch09-ch10.bash start ch10
podman exec -it ros2-com260-ch10 bash --noprofile --norc
source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash

每个新的 x86 容器终端都加载上述两个 setup；每个 COM260 终端都加载：

source ~/.config/ros2-course-com260-ch09-ch10/env.bash

所有 GUI、后端 Launch、地图保存和 rosbag 命令在 x86 容器执行；四个 slam_lab C++ 入口与 slam_map_runner 在 COM260 执行，后端 Launch 通过 start_monitor:=false 关闭其附带的监控器。双方使用同一 DDS 域，不能混入其他章节的 /clock、/scan 或 /map 发布者。

安装全部依赖

x86 的后端依赖由第 9 章 Containerfile.ch09-ch10 一次构建。板端只编译客户端和 Cartographer 接口，不安装仿真或 SLAM 后端。

COM260：

cd ~/ROS2_RISCV_COM260_CH09_CH10
bash course_support/k3_com260_kit/scripts/prepare-ch09-ch10-interfaces.bash
bash setup_course_k3_com260_kit.sh --build-ch10
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
ros2 interface show cartographer_ros_msgs/srv/WriteState

接口源码分别固定在 Cartographer 2.0.9002 和 Nav2 1.1.20 对应的官方提交；构建入口核对源码版本并拒绝覆盖已有未标记目录或有改动的源码。下载中断留下的干净、无 HEAD 仓库可重跑同一脚本；连续 60 秒低于 1024 B/s 的 HTTP 下载会终止并报错。仿真依赖不写入 COM260 系统。

如果板端不能稳定访问 GitHub，可在能联网的电脑准备两个已检出固定提交的官方 Git 仓库，放在 ~/ros2_ch09_ch10_interface_sources/{cartographer_ros,navigation2}。保留 .git，只传源码，编译仍在 COM260 执行。先结束本组板端程序；若接口工作区已存在，先在 COM260 留存它：

deps="$HOME/ros2_course_com260_ch09_ch10_deps_ws"
if [ -e "$deps" ]; then
  test -f "$deps/.com260-ch09-ch10-deps" && \
  mv "$deps" "${deps}.before-offline-$(date +%Y%m%dT%H%M%S)"
fi

在保存源码的电脑运行以下命令。两个 test 必须成功；目标目录必须尚不存在，避免覆盖板端文件。

set -e
cd ~/ros2_ch09_ch10_interface_sources
test "$(git -C cartographer_ros rev-parse HEAD)" = 43cd92bc8c4bf1a90f50eddbbbd724a899ceebe1
test "$(git -C navigation2 rev-parse HEAD)" = a097086719c88f781aa59788eca29ac6ca5e56db
ssh com260 'set -e; d="$HOME/ros2_course_com260_ch09_ch10_deps_ws"; test ! -e "$d"; mkdir -p "$d/src"; touch "$d/.com260-ch09-ch10-deps"'
rsync -a cartographer_ros navigation2 com260:ros2_course_com260_ch09_ch10_deps_ws/src/
ssh com260 'cd ~/ROS2_RISCV_COM260_CH09_CH10 && bash course_support/k3_com260_kit/scripts/prepare-ch09-ch10-interfaces.bash'

准备脚本仍会核对两个 HEAD 和工作区是否干净，不更换源码版本；成功后继续执行上面的 --build-ch10。

当前仓库仿真验证：slam_toolbox 在线建图

实验目标

使用当前 ROS 2 Humble + Gazebo Harmonic 入口，验证激光、里程计、TF 输入经过 slam_toolbox 后产生地图更新，并用检查节点给机器人发送可重复运动。

运行步骤

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash

# 终端 1：Gazebo + slam_toolbox + RViz
ros2 launch slam_sim_demo_ros2 slam_demo.launch.py \
  use_gazebo:=true use_rviz:=true gz_headless:=false

# COM260
# COM260 终端：运动并检查地图增长
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
ros2 run slam_sim_demo_ros2 slam_map_runner
ros2 topic echo /map --once

观察与验收

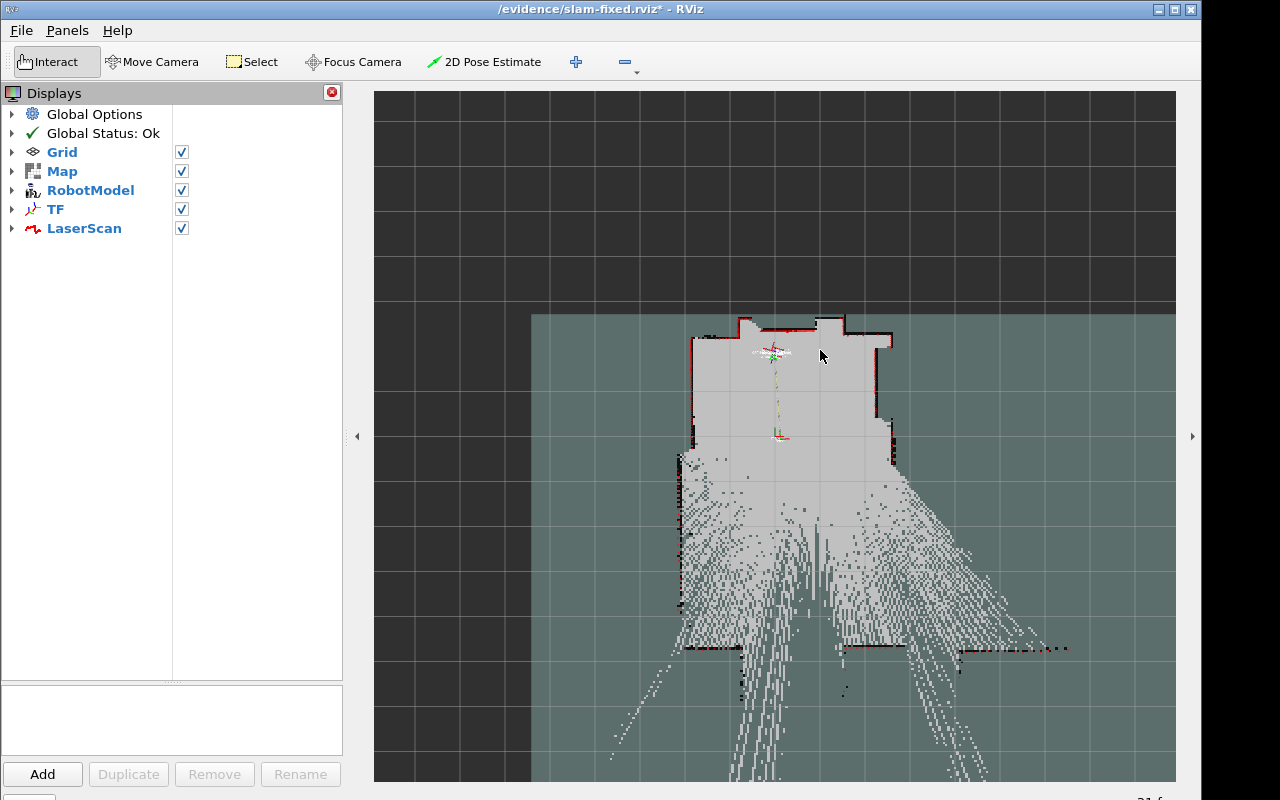

RViz 中添加 Map、LaserScan、TF；终端检查 map_updates、known_cell_growth、odom_distance 和 scan_updates，成功时输出 slam-map-updated。

源码：src_k3_com260_kit/slam_sim_demo_ros2/。本节验证的是 slam_toolbox，不把它的结果标为 Hector、gmapping 或 Cartographer 结果。演示结束后，先等待 slam_map_runner 退出并确认小车停止，再在 x86 的组合 Launch 终端按 Ctrl+C，停止 Gazebo、slam_toolbox 和 RViz；之后开始独立建包练习。

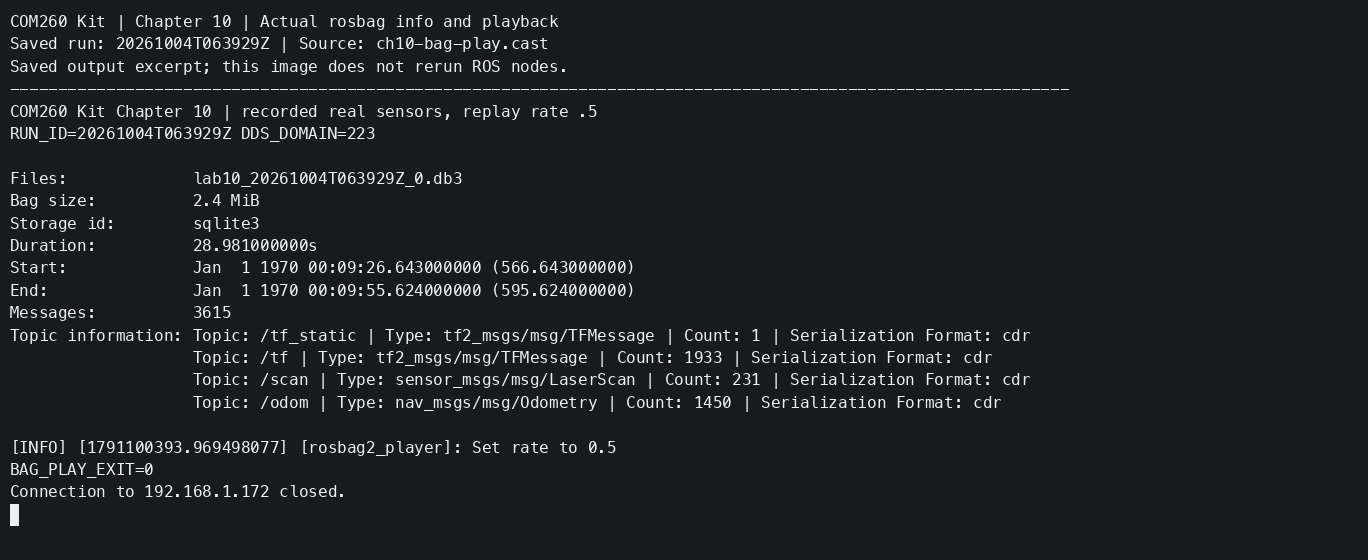

实际运行证据

slam_toolbox、传感器话题和地图更新检查素材：

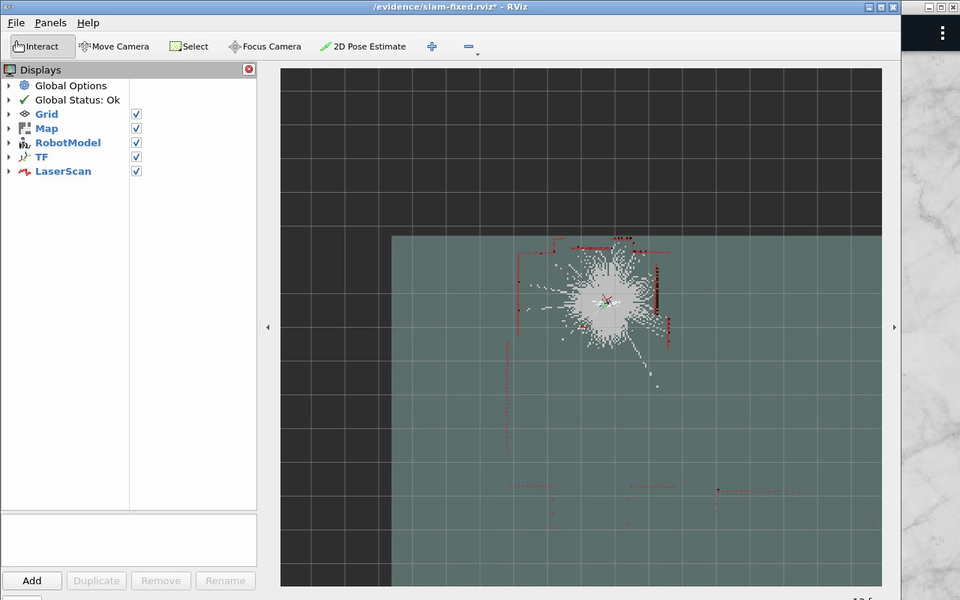

ch10 SLAM 运行输出

原始录制：ch10_slam.cast。

实验平台：Ubuntu 22.04 + ROS 2 Humble + Gazebo 仿真

预计时间：2 课时（90 分钟）

实验准备：创建 slam_lab 功能包

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash

ros2 pkg prefix sim_demo
ros2 launch sim_demo sim_bringup.launch.py --show-args

创建目录

在 COM260 创建一个与课程参考包分离的新练习工作区：

source ~/.config/ros2-course-com260-ch09-ch10/env.bash
mkdir -p ~/my_slam_com260_ws/src
cd ~/my_slam_com260_ws/src
ros2 pkg create slam_lab --build-type ament_cmake --license Apache-2.0
cd slam_lab
mkdir -p src launch config/cartographer

最终目录必须是：

slam_lab/
├── package.xml
├── CMakeLists.txt
├── src/
│   ├── slam_monitor.cpp
│   ├── initial_pose_setter.cpp
│   ├── amcl_evaluator.cpp
│   └── cartographer_state_saver.cpp
├── launch/
│   ├── online_mapping.launch.py
│   ├── amcl_localization.launch.py
│   └── cartographer_mapping.launch.py
└── config/
    ├── mapper_params_online_async.yaml
    ├── nav2_localization.yaml
    └── cartographer/
        └── burger_2d.lua

完整参考源码位于 src_k3_com260_kit/slam_lab/。下面逐个保存源文件；完成后把同一份练习源码传到 x86 独立练习目录，分别构建两种架构；x86 构建时安装后端 Launch 和 Cartographer 官方 Lua 资源。

package.xml

文件路径：~/my_slam_com260_ws/src/slam_lab/package.xml

<?xml version="1.0"?>
<package format="3">
  <name>slam_lab</name>
  <version>0.1.0</version>
  <description>COM260 Kit C++ course examples for slam_lab.</description>
  <maintainer email="student@example.com">Student</maintainer>
  <license>Apache-2.0</license>
  <buildtool_depend>ament_cmake</buildtool_depend>
  <depend>rclcpp</depend>
  <depend>geometry_msgs</depend>
  <depend>nav_msgs</depend>
  <depend>tf2</depend>
  <depend>tf2_ros</depend>
  <depend>tf2_geometry_msgs</depend>
  <depend>cartographer_ros_msgs</depend>
  <exec_depend>ament_index_python</exec_depend>
  <exec_depend>launch</exec_depend>
  <exec_depend>launch_ros</exec_depend>
  <exec_depend>slam_toolbox</exec_depend>
  <exec_depend>nav2_bringup</exec_depend>
  <exec_depend>nav2_map_server</exec_depend>
  <exec_depend>cartographer_ros</exec_depend>
  <exec_depend>rviz2</exec_depend>
  <export><build_type>ament_cmake</build_type></export>
</package>

CMakeLists.txt

文件路径：~/my_slam_com260_ws/src/slam_lab/CMakeLists.txt

cmake_minimum_required(VERSION 3.8)
project(slam_lab)

find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(geometry_msgs REQUIRED)
find_package(nav_msgs REQUIRED)
find_package(tf2 REQUIRED)
find_package(tf2_ros REQUIRED)
find_package(tf2_geometry_msgs REQUIRED)
find_package(cartographer_ros_msgs REQUIRED)

add_compile_options(-Wall -Wextra -Wpedantic)

add_executable(slam_monitor src/slam_monitor.cpp)
target_compile_features(slam_monitor PRIVATE cxx_std_17)
ament_target_dependencies(slam_monitor rclcpp geometry_msgs nav_msgs tf2 tf2_ros tf2_geometry_msgs cartographer_ros_msgs)

add_executable(set_initial_pose src/initial_pose_setter.cpp)
target_compile_features(set_initial_pose PRIVATE cxx_std_17)
ament_target_dependencies(set_initial_pose rclcpp geometry_msgs nav_msgs tf2 tf2_ros tf2_geometry_msgs cartographer_ros_msgs)

add_executable(amcl_evaluator src/amcl_evaluator.cpp)
target_compile_features(amcl_evaluator PRIVATE cxx_std_17)
ament_target_dependencies(amcl_evaluator rclcpp geometry_msgs nav_msgs tf2 tf2_ros tf2_geometry_msgs cartographer_ros_msgs)

add_executable(save_cartographer_state src/cartographer_state_saver.cpp)
target_compile_features(save_cartographer_state PRIVATE cxx_std_17)
ament_target_dependencies(save_cartographer_state rclcpp geometry_msgs nav_msgs tf2 tf2_ros tf2_geometry_msgs cartographer_ros_msgs)

install(TARGETS slam_monitor set_initial_pose amcl_evaluator save_cartographer_state DESTINATION lib/${PROJECT_NAME})
install(DIRECTORY launch config DESTINATION share/${PROJECT_NAME})
# The board runs clients; the x86 backend image also installs Cartographer Lua resources.
if(EXISTS "/opt/ros/humble/share/cartographer/configuration_files")
  install(DIRECTORY /opt/ros/humble/share/cartographer/configuration_files/
    DESTINATION share/${PROJECT_NAME}/config/cartographer FILES_MATCHING PATTERN "*.lua")
endif()

ament_package()

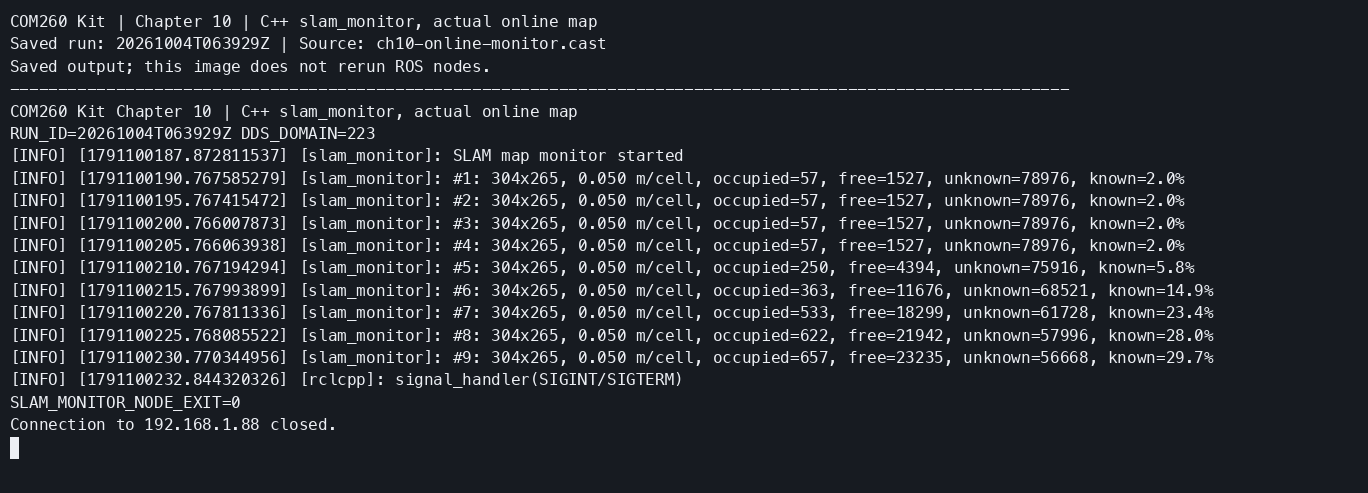

slam_monitor.cpp

文件路径：~/my_slam_com260_ws/src/slam_lab/src/slam_monitor.cpp

#include <algorithm>
#include <cstdint>
#include <memory>
#include "nav_msgs/msg/occupancy_grid.hpp"
#include "rclcpp/rclcpp.hpp"

class SlamMonitor : public rclcpp::Node
{
public:
  SlamMonitor() : Node("slam_monitor")
  {
    subscription_ = create_subscription<nav_msgs::msg::OccupancyGrid>(
      "/map", rclcpp::QoS(1).reliable().transient_local(),
      [this](nav_msgs::msg::OccupancyGrid::ConstSharedPtr msg) {
        const auto occupied = std::count_if(msg->data.begin(), msg->data.end(),
          [](int8_t value) {return value >= 65;});
        const auto unknown = std::count_if(msg->data.begin(), msg->data.end(),
          [](int8_t value) {return value < 0;});
        const auto known = msg->data.size() - unknown;
        const double ratio = msg->data.empty() ? 0.0 : 100.0 * known / msg->data.size();
        RCLCPP_INFO(get_logger(),
          "#%zu: %ux%u, %.3f m/cell, occupied=%zu, free=%zu, unknown=%zu, known=%.1f%%",
          ++count_, msg->info.width, msg->info.height, msg->info.resolution,
          static_cast<size_t>(occupied), known - occupied, static_cast<size_t>(unknown), ratio);
      });
    RCLCPP_INFO(get_logger(), "SLAM map monitor started");
  }
private:
  size_t count_{0};
  rclcpp::Subscription<nav_msgs::msg::OccupancyGrid>::SharedPtr subscription_;
};

int main(int argc, char ** argv)
{
  rclcpp::init(argc, argv);
  rclcpp::spin(std::make_shared<SlamMonitor>());
  rclcpp::shutdown();
  return 0;
}

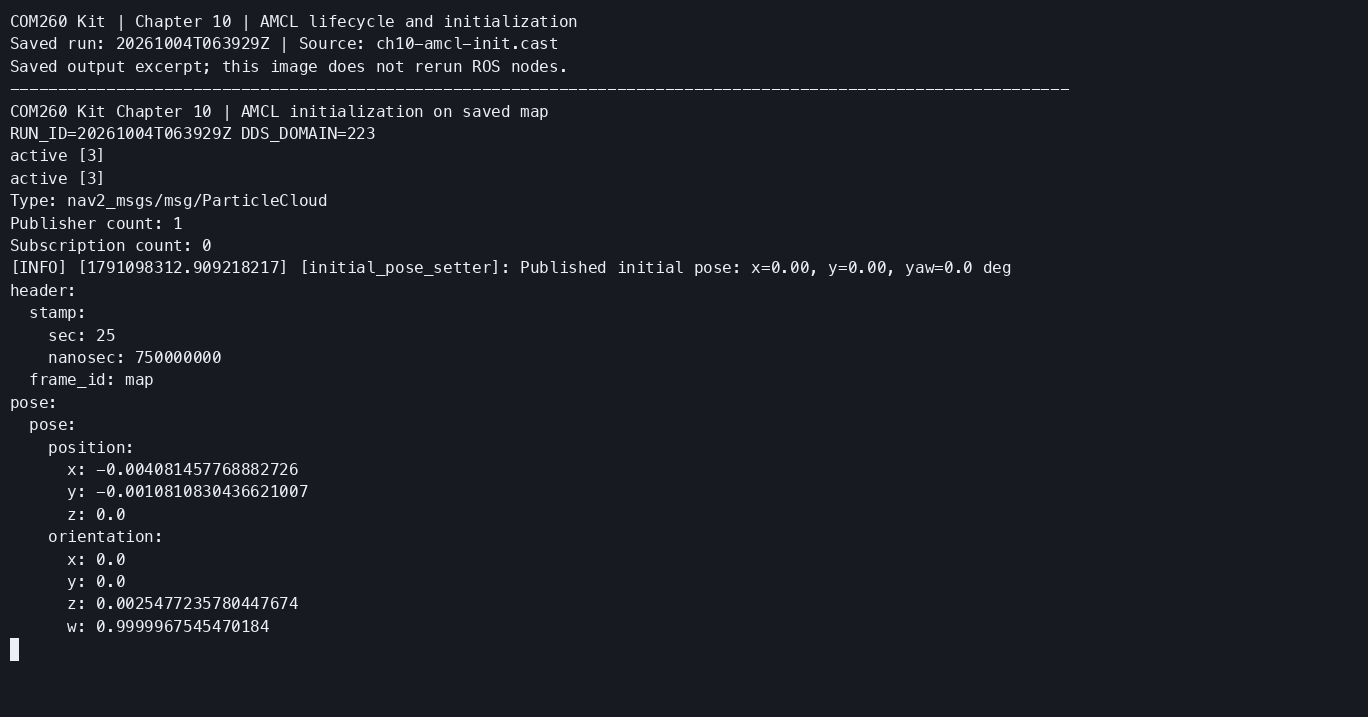

initial_pose_setter.cpp

文件路径：~/my_slam_com260_ws/src/slam_lab/src/initial_pose_setter.cpp

#include <chrono>
#include <cmath>
#include <memory>
#include <stdexcept>
#include <string>
#include <thread>
#include "geometry_msgs/msg/pose_with_covariance_stamped.hpp"
#include "rclcpp/rclcpp.hpp"

using namespace std::chrono_literals;

int main(int argc, char ** argv)
{
  rclcpp::init(argc, argv);
  int status = 0;
  auto node = std::make_shared<rclcpp::Node>("initial_pose_setter");
  try {
    const auto args = rclcpp::remove_ros_arguments(argc, argv);
    if (args.size() != 4) {throw std::invalid_argument("Usage: set_initial_pose X Y YAW_DEG [--ros-args ...]");}
    const auto number = [](const std::string & value) {
        size_t used = 0;
        const double result = std::stod(value, &used);
        if (used != value.size() || !std::isfinite(result)) {throw std::invalid_argument("Pose values must be finite numbers");}
        return result;
      };
    const double x = number(args[1]), y = number(args[2]), yaw_deg = number(args[3]);
    const double yaw = yaw_deg * std::acos(-1.0) / 180.0;
    auto pub = node->create_publisher<geometry_msgs::msg::PoseWithCovarianceStamped>("/initialpose", 10);
    const auto deadline = std::chrono::steady_clock::now() + 3s;
    while (rclcpp::ok() && pub->get_subscription_count() == 0 && std::chrono::steady_clock::now() < deadline) {
      rclcpp::spin_some(node);
      std::this_thread::sleep_for(100ms);
    }
    if (pub->get_subscription_count() == 0) {
      RCLCPP_WARN(node->get_logger(), "No /initialpose subscriber found; check whether AMCL is active");
    }
    geometry_msgs::msg::PoseWithCovarianceStamped msg;
    msg.header.frame_id = "map";
    msg.pose.pose.position.x = x;
    msg.pose.pose.position.y = y;
    msg.pose.pose.orientation.z = std::sin(yaw / 2.0);
    msg.pose.pose.orientation.w = std::cos(yaw / 2.0);
    msg.pose.covariance[0] = 0.25;
    msg.pose.covariance[7] = 0.25;
    msg.pose.covariance[35] = 0.0685;
    for (int i = 0; i < 3 && rclcpp::ok(); ++i) {
      msg.header.stamp = node->now();
      pub->publish(msg);
      rclcpp::spin_some(node);
      std::this_thread::sleep_for(200ms);
    }
    RCLCPP_INFO(node->get_logger(), "Published initial pose: x=%.2f, y=%.2f, yaw=%.1f deg", x, y, yaw_deg);
  } catch (const std::exception & error) {
    RCLCPP_ERROR(node->get_logger(), "%s", error.what());
    status = 2;
  }
  rclcpp::shutdown();
  return status;
}

amcl_evaluator.cpp

文件路径：~/my_slam_com260_ws/src/slam_lab/src/amcl_evaluator.cpp

#include <chrono>
#include <cmath>
#include <memory>
#include <string>
#include "geometry_msgs/msg/pose_stamped.hpp"
#include "geometry_msgs/msg/pose_with_covariance_stamped.hpp"
#include "nav_msgs/msg/odometry.hpp"
#include "rclcpp/rclcpp.hpp"
#include "tf2_geometry_msgs/tf2_geometry_msgs.hpp"
#include "tf2_ros/buffer.h"
#include "tf2_ros/transform_listener.h"

using namespace std::chrono_literals;

class AmclEvaluator : public rclcpp::Node
{
public:
  AmclEvaluator() : Node("amcl_evaluator"), buffer_(get_clock()), listener_(buffer_)
  {
    const auto topic = declare_parameter<std::string>("ground_truth_topic", "/ground_truth/odom");
    target_frame_ = declare_parameter<std::string>("target_frame", "map");
    amcl_sub_ = create_subscription<geometry_msgs::msg::PoseWithCovarianceStamped>("/amcl_pose", 10,
      [this](geometry_msgs::msg::PoseWithCovarianceStamped::ConstSharedPtr msg) {amcl_ = msg;});
    truth_sub_ = create_subscription<nav_msgs::msg::Odometry>(topic, 10,
      [this](nav_msgs::msg::Odometry::ConstSharedPtr msg) {truth_ = msg;});
    timer_ = create_wall_timer(1s, [this]() {evaluate();});
    RCLCPP_INFO(get_logger(), "Comparing /amcl_pose with %s in %s", topic.c_str(), target_frame_.c_str());
  }
private:
  static double yaw(const geometry_msgs::msg::Pose & pose)
  {
    const auto & q = pose.orientation;
    return std::atan2(2.0 * (q.w * q.z + q.x * q.y), 1.0 - 2.0 * (q.y * q.y + q.z * q.z));
  }
  geometry_msgs::msg::PoseStamped transform(
    const std_msgs::msg::Header & header, const geometry_msgs::msg::Pose & pose)
  {
    geometry_msgs::msg::PoseStamped input;
    input.header = header;
    input.pose = pose;
    return buffer_.transform(input, target_frame_, tf2::durationFromSec(0.2));
  }

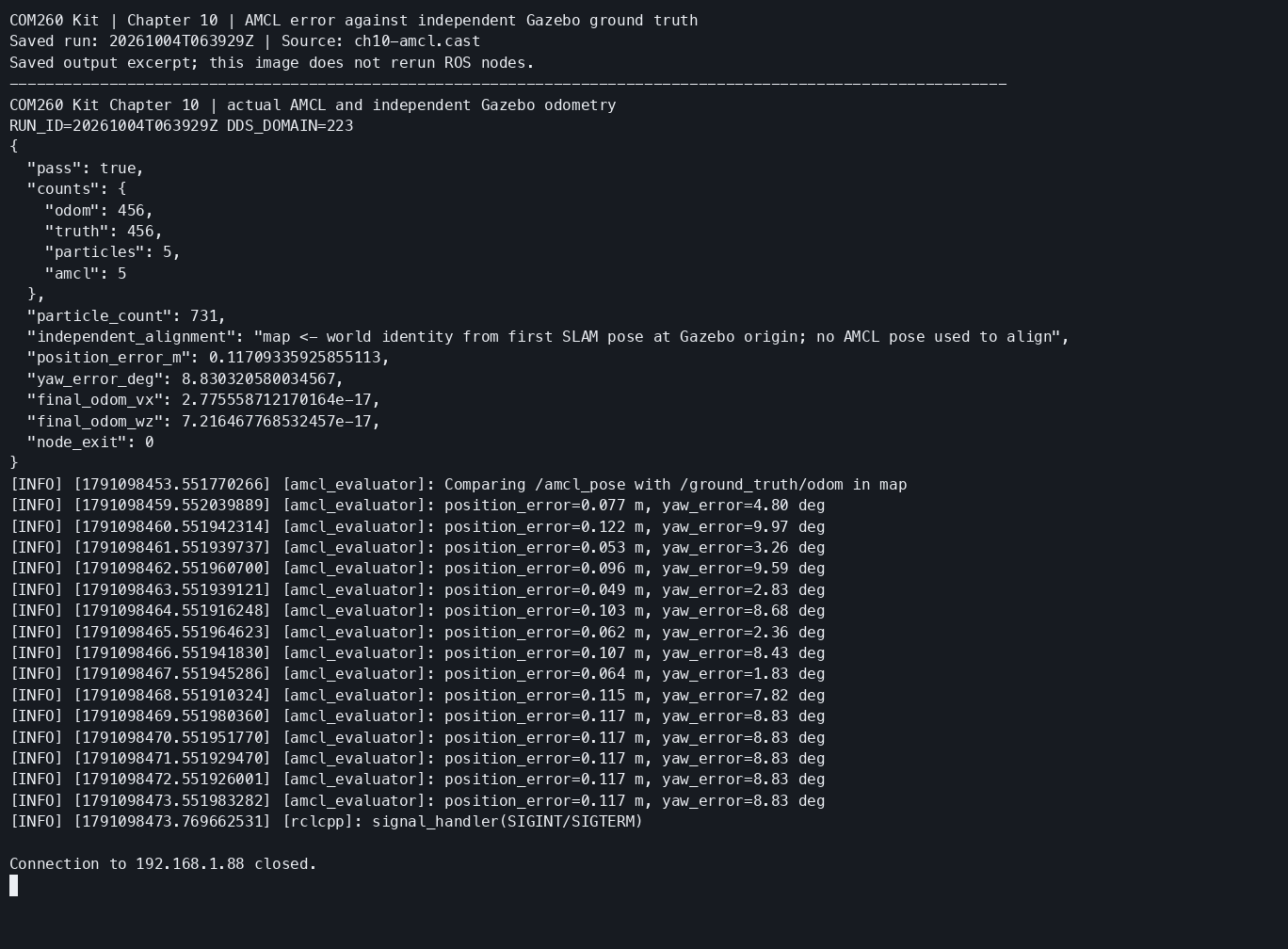

  void evaluate()
  {
    if (!amcl_ || !truth_) {return;}
    try {
      const auto estimated = transform(amcl_->header, amcl_->pose.pose);
      const auto actual = transform(truth_->header, truth_->pose.pose);
      const double position_error = std::hypot(estimated.pose.position.x - actual.pose.position.x,
        estimated.pose.position.y - actual.pose.position.y);
      const double delta = yaw(estimated.pose) - yaw(actual.pose);
      const double yaw_error = std::abs(std::atan2(std::sin(delta), std::cos(delta))) * 180.0 / std::acos(-1.0);
      RCLCPP_INFO(get_logger(), "position_error=%.3f m, yaw_error=%.2f deg", position_error, yaw_error);
    } catch (const tf2::TransformException & error) {
      RCLCPP_WARN(get_logger(), "Cannot transform poses: %s", error.what());
    }
  }
  std::string target_frame_;
  tf2_ros::Buffer buffer_;
  tf2_ros::TransformListener listener_;
  geometry_msgs::msg::PoseWithCovarianceStamped::ConstSharedPtr amcl_;
  nav_msgs::msg::Odometry::ConstSharedPtr truth_;
  rclcpp::Subscription<geometry_msgs::msg::PoseWithCovarianceStamped>::SharedPtr amcl_sub_;
  rclcpp::Subscription<nav_msgs::msg::Odometry>::SharedPtr truth_sub_;
  rclcpp::TimerBase::SharedPtr timer_;
};

int main(int argc, char ** argv)
{
  rclcpp::init(argc, argv);
  rclcpp::spin(std::make_shared<AmclEvaluator>());
  rclcpp::shutdown();
  return 0;
}

cartographer_state_saver.cpp

文件路径：~/my_slam_com260_ws/src/slam_lab/src/cartographer_state_saver.cpp

#include <chrono>
#include <filesystem>
#include <memory>
#include <stdexcept>
#include <string>
#include "cartographer_ros_msgs/srv/finish_trajectory.hpp"
#include "cartographer_ros_msgs/srv/write_state.hpp"
#include "rclcpp/rclcpp.hpp"

using namespace std::chrono_literals;

int main(int argc, char ** argv)
{
  rclcpp::init(argc, argv);
  auto node = std::make_shared<rclcpp::Node>("cartographer_state_saver");
  int status = 0;
  try {
    const auto args = rclcpp::remove_ros_arguments(argc, argv);
    if (args.size() != 3) {throw std::invalid_argument("Usage: save_cartographer_state TRAJECTORY_ID SERVER_ABSOLUTE_PATH");}
    size_t used = 0;
    const int trajectory_id = std::stoi(args[1], &used);
    if (used != args[1].size() || trajectory_id < 0) {throw std::invalid_argument("Trajectory ID must be a nonnegative integer");}
    if (!std::filesystem::path(args[2]).is_absolute()) {throw std::invalid_argument("Output must be an absolute path on the Cartographer server");}
    auto finish = node->create_client<cartographer_ros_msgs::srv::FinishTrajectory>("/finish_trajectory");
    auto write = node->create_client<cartographer_ros_msgs::srv::WriteState>("/write_state");
    if (!finish->wait_for_service(10s)) {throw std::runtime_error("/finish_trajectory is unavailable");}
    if (!write->wait_for_service(10s)) {throw std::runtime_error("/write_state is unavailable");}
    auto finish_request = std::make_shared<cartographer_ros_msgs::srv::FinishTrajectory::Request>();
    finish_request->trajectory_id = trajectory_id;
    auto finish_future = finish->async_send_request(finish_request);
    if (rclcpp::spin_until_future_complete(node, finish_future, 30s) != rclcpp::FutureReturnCode::SUCCESS) {
      throw std::runtime_error("Failed to finish trajectory");
    }
    const auto finish_status = finish_future.get()->status;
    if (finish_status.code != 0) {throw std::runtime_error("Finish failed: " + finish_status.message);}
    auto write_request = std::make_shared<cartographer_ros_msgs::srv::WriteState::Request>();
    write_request->filename = args[2];
    write_request->include_unfinished_submaps = true;
    auto write_future = write->async_send_request(write_request);
    if (rclcpp::spin_until_future_complete(node, write_future, 30s) != rclcpp::FutureReturnCode::SUCCESS) {
      throw std::runtime_error("Failed to write Cartographer state");
    }
    const auto write_status = write_future.get()->status;
    if (write_status.code != 0) {throw std::runtime_error("Write failed: " + write_status.message);}
    RCLCPP_INFO(node->get_logger(), "Saved Cartographer state on server: %s", args[2].c_str());
  } catch (const std::exception & error) {
    RCLCPP_ERROR(node->get_logger(), "%s", error.what());
    status = 1;
  }
  rclcpp::shutdown();
  return status;
}

online_mapping.launch.py

文件路径：~/my_slam_com260_ws/src/slam_lab/launch/online_mapping.launch.py

#!/usr/bin/env python3

import os

from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription
from launch.conditions import IfCondition
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node


def generate_launch_description():
    package_share = get_package_share_directory('slam_lab')
    slam_toolbox_share = get_package_share_directory('slam_toolbox')

    use_sim_time = LaunchConfiguration('use_sim_time')
    params_file = LaunchConfiguration('params_file')
    start_monitor = LaunchConfiguration('start_monitor')

    slam_launch = IncludeLaunchDescription(
        PythonLaunchDescriptionSource(
            os.path.join(
                slam_toolbox_share,
                'launch',
                'online_async_launch.py',
            )
        ),
        launch_arguments={
            'slam_params_file': params_file,
            'use_sim_time': use_sim_time,
        }.items(),
    )

    monitor_node = Node(
        package='slam_lab',
        executable='slam_monitor',
        name='slam_monitor',
        output='screen',
        parameters=[{'use_sim_time': use_sim_time}],
        condition=IfCondition(start_monitor),
    )

    return LaunchDescription([
        DeclareLaunchArgument(
            'use_sim_time',
            default_value='true',
            description='Use the Gazebo /clock topic',
        ),
        DeclareLaunchArgument(
            'params_file',
            default_value=os.path.join(
                package_share,
                'config',
                'mapper_params_online_async.yaml',
            ),
            description='Absolute path to the slam_toolbox parameter file',
        ),
        DeclareLaunchArgument(
            'start_monitor',
            default_value='true',
            description='Start the map statistics node',
        ),
        slam_launch,
        monitor_node,
    ])

amcl_localization.launch.py

文件路径：~/my_slam_com260_ws/src/slam_lab/launch/amcl_localization.launch.py

#!/usr/bin/env python3

import os

from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription
from launch.conditions import IfCondition
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration


def generate_launch_description():
    package_share = get_package_share_directory('slam_lab')
    nav2_share = get_package_share_directory('nav2_bringup')

    map_file = LaunchConfiguration('map')
    params_file = LaunchConfiguration('params_file')
    use_sim_time = LaunchConfiguration('use_sim_time')
    autostart = LaunchConfiguration('autostart')
    use_rviz = LaunchConfiguration('use_rviz')

    localization = IncludeLaunchDescription(
        PythonLaunchDescriptionSource(
            os.path.join(nav2_share, 'launch', 'localization_launch.py')
        ),
        launch_arguments={
            'map': map_file,
            'params_file': params_file,
            'use_sim_time': use_sim_time,
            'autostart': autostart,
        }.items(),
    )

    rviz = IncludeLaunchDescription(
        PythonLaunchDescriptionSource(
            os.path.join(nav2_share, 'launch', 'rviz_launch.py')
        ),
        launch_arguments={'use_sim_time': use_sim_time}.items(),
        condition=IfCondition(use_rviz),
    )

    return LaunchDescription([
        DeclareLaunchArgument(
            'map',
            description='Absolute path to the saved map YAML file',
        ),
        DeclareLaunchArgument(
            'params_file',
            default_value=os.path.join(
                package_share,
                'config',
                'nav2_localization.yaml',
            ),
            description='Absolute path to the Nav2 localization parameters',
        ),
        DeclareLaunchArgument('use_sim_time', default_value='true'),
        DeclareLaunchArgument('autostart', default_value='true'),
        DeclareLaunchArgument('use_rviz', default_value='true'),
        localization,
        rviz,
    ])

cartographer_mapping.launch.py

文件路径：~/my_slam_com260_ws/src/slam_lab/launch/cartographer_mapping.launch.py

#!/usr/bin/env python3

import os

from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node


def generate_launch_description():
    package_share = get_package_share_directory('slam_lab')

    configuration_directory = LaunchConfiguration('configuration_directory')
    configuration_basename = LaunchConfiguration('configuration_basename')
    scan_topic = LaunchConfiguration('scan_topic')
    odom_topic = LaunchConfiguration('odom_topic')
    resolution = LaunchConfiguration('resolution')
    use_sim_time = LaunchConfiguration('use_sim_time')

    cartographer_node = Node(
        package='cartographer_ros',
        executable='cartographer_node',
        name='cartographer_node',
        output='screen',
        arguments=[
            '-configuration_directory',
            configuration_directory,
            '-configuration_basename',
            configuration_basename,
        ],
        parameters=[{'use_sim_time': use_sim_time}],
        remappings=[
            ('scan', scan_topic),
            ('odom', odom_topic),
        ],
    )

    occupancy_grid_node = Node(
        package='cartographer_ros',
        executable='cartographer_occupancy_grid_node',
        name='cartographer_occupancy_grid_node',
        output='screen',
        arguments=[
            '-resolution',
            resolution,
            '-publish_period_sec',
            '1.0',
        ],
        parameters=[{'use_sim_time': use_sim_time}],
    )

    return LaunchDescription([
        DeclareLaunchArgument(
            'configuration_directory',
            default_value=os.path.join(
                package_share,
                'config',
                'cartographer',
            ),
        ),
        DeclareLaunchArgument(
            'configuration_basename',
            default_value='burger_2d.lua',
        ),
        DeclareLaunchArgument('scan_topic', default_value='/scan'),
        DeclareLaunchArgument('odom_topic', default_value='/odom'),
        DeclareLaunchArgument('resolution', default_value='0.05'),
        DeclareLaunchArgument('use_sim_time', default_value='true'),
        cartographer_node,
        occupancy_grid_node,
    ])

mapper_params_online_async.yaml

文件路径：~/my_slam_com260_ws/src/slam_lab/config/mapper_params_online_async.yaml

slam_toolbox:
  ros__parameters:
    solver_plugin: solver_plugins::CeresSolver
    ceres_linear_solver: SPARSE_NORMAL_CHOLESKY
    ceres_preconditioner: SCHUR_JACOBI
    ceres_trust_strategy: LEVENBERG_MARQUARDT
    ceres_dogleg_type: TRADITIONAL_DOGLEG
    ceres_loss_function: None

    odom_frame: odom
    map_frame: map
    base_frame: base_link
    scan_topic: /scan
    use_map_saver: true
    mode: mapping

    debug_logging: false
    throttle_scans: 1
    transform_publish_period: 0.02
    map_update_interval: 5.0
    resolution: 0.05
    max_laser_range: 12.0
    minimum_time_interval: 0.5
    transform_timeout: 0.2
    tf_buffer_duration: 30.0
    stack_size_to_use: 40000000
    enable_interactive_mode: true

    use_scan_matching: true
    use_scan_barycenter: true
    minimum_travel_distance: 0.2
    minimum_travel_heading: 0.2
    scan_buffer_size: 10
    scan_buffer_maximum_scan_distance: 10.0
    link_match_minimum_response_fine: 0.1
    link_scan_maximum_distance: 1.5
    loop_search_maximum_distance: 3.0
    do_loop_closing: true
    loop_match_minimum_chain_size: 10
    loop_match_maximum_variance_coarse: 3.0
    loop_match_minimum_response_coarse: 0.35
    loop_match_minimum_response_fine: 0.45

    correlation_search_space_dimension: 0.5
    correlation_search_space_resolution: 0.01
    correlation_search_space_smear_deviation: 0.1

    loop_search_space_dimension: 8.0
    loop_search_space_resolution: 0.05
    loop_search_space_smear_deviation: 0.03

    distance_variance_penalty: 0.5
    angle_variance_penalty: 1.0
    fine_search_angle_offset: 0.00349
    coarse_search_angle_offset: 0.349
    coarse_angle_resolution: 0.0349
    minimum_angle_penalty: 0.9
    minimum_distance_penalty: 0.5
    use_response_expansion: true

nav2_localization.yaml

文件路径：~/my_slam_com260_ws/src/slam_lab/config/nav2_localization.yaml

amcl:
  ros__parameters:
    use_sim_time: true
    alpha1: 0.2
    alpha2: 0.2
    alpha3: 0.2
    alpha4: 0.2
    alpha5: 0.2
    base_frame_id: base_link
    beam_skip_distance: 0.5
    beam_skip_error_threshold: 0.9
    beam_skip_threshold: 0.3
    do_beamskip: false
    global_frame_id: map
    lambda_short: 0.1
    laser_likelihood_max_dist: 2.0
    laser_max_range: 12.0
    laser_min_range: 0.15
    laser_model_type: likelihood_field
    max_beams: 60
    max_particles: 2000
    min_particles: 500
    odom_frame_id: odom
    pf_err: 0.05
    pf_z: 0.99
    recovery_alpha_fast: 0.0
    recovery_alpha_slow: 0.0
    resample_interval: 1
    robot_model_type: nav2_amcl::DifferentialMotionModel
    save_pose_rate: 0.5
    sigma_hit: 0.2
    tf_broadcast: true
    transform_tolerance: 1.0
    update_min_a: 0.2
    update_min_d: 0.25
    z_hit: 0.5
    z_max: 0.05
    z_rand: 0.5
    z_short: 0.05
    scan_topic: scan
    set_initial_pose: false
    always_reset_initial_pose: false
    first_map_only: false

map_server:
  ros__parameters:
    use_sim_time: true
    yaml_filename: ''
    topic_name: map
    frame_id: map

lifecycle_manager_localization:
  ros__parameters:
    use_sim_time: true
    autostart: true
    node_names: [map_server, amcl]
    bond_timeout: 4.0

burger_2d.lua

文件路径：~/my_slam_com260_ws/src/slam_lab/config/cartographer/burger_2d.lua

Cartographer 的 map_builder.lua、trajectory_builder.lua 及其依赖属于 x86 容器内已安装的官方软件包。CMake 在该容器构建时把基础 Lua 安装到本包配置目录，COM260 仅运行服务客户端，不需要这些后端文件。保存以下机器人配置为 burger_2d.lua。

include "map_builder.lua"
include "trajectory_builder.lua"

options = {
  map_builder = MAP_BUILDER,
  trajectory_builder = TRAJECTORY_BUILDER,

  map_frame = "map",
  tracking_frame = "base_link",
  published_frame = "odom",
  odom_frame = "odom",
  provide_odom_frame = false,
  publish_frame_projected_to_2d = true,

  use_odometry = true,
  use_nav_sat = false,
  use_landmarks = false,

  num_laser_scans = 1,
  num_multi_echo_laser_scans = 0,
  num_subdivisions_per_laser_scan = 1,
  num_point_clouds = 0,

  lookup_transform_timeout_sec = 0.2,
  submap_publish_period_sec = 0.3,
  pose_publish_period_sec = 0.005,
  trajectory_publish_period_sec = 0.03,

  rangefinder_sampling_ratio = 1.0,
  odometry_sampling_ratio = 1.0,
  fixed_frame_pose_sampling_ratio = 1.0,
  imu_sampling_ratio = 1.0,
  landmarks_sampling_ratio = 1.0,
}

MAP_BUILDER.use_trajectory_builder_2d = true

TRAJECTORY_BUILDER_2D.use_imu_data = false
TRAJECTORY_BUILDER_2D.min_range = 0.15
TRAJECTORY_BUILDER_2D.max_range = 12.0
TRAJECTORY_BUILDER_2D.missing_data_ray_length = 5.0
TRAJECTORY_BUILDER_2D.num_accumulated_range_data = 1

POSE_GRAPH.optimize_every_n_nodes = 90
POSE_GRAPH.constraint_builder.sampling_ratio = 0.3
POSE_GRAPH.constraint_builder.min_score = 0.55

return options

编译完整功能包

在 COM260 编译刚刚创建的练习包：

source ~/.config/ros2-course-com260-ch09-ch10/env.bash
cd ~/my_slam_com260_ws
python3 -m colcon build --packages-select slam_lab --symlink-install
source install/setup.bash
ros2 pkg prefix slam_lab
ros2 pkg executables slam_lab

需要运行练习包的 COM260 终端在课程环境之后追加 source ~/my_slam_com260_ws/install/setup.bash。不要在同一 colcon 源码范围内加入两个同名包。

在能通过 SSH 连接两台设备的访问端同步当前练习源码，不传二进制或安装产物：

SLAM_STAGE=$(mktemp -d)
rsync -av com260:my_slam_com260_ws/src/slam_lab/ "$SLAM_STAGE/slam_lab/"
ssh duomaomao 'mkdir -p ~/ros2_course_com260_ch09_ch10_humble_ws/output/exercises/ch10_ws/src/slam_lab'
rsync -av "$SLAM_STAGE/slam_lab/" \
  duomaomao:ros2_course_com260_ch09_ch10_humble_ws/output/exercises/ch10_ws/src/slam_lab/

在 x86 容器独立构建同一练习包：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
cd /workspace/output/exercises/ch10_ws
colcon build --packages-select slam_lab --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Debug
source install/setup.bash
ros2 pkg prefix slam_lab

输出应指向 /workspace/output/exercises/ch10_ws/install/slam_lab。后续每个 x86 容器终端都在课程环境之后加载此 overlay；修改后重新同步、构建并重启相关后端，避免读取课程参考包的旧配置。检查三个入口：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash
ros2 launch slam_lab online_mapping.launch.py --show-args
ros2 launch slam_lab amcl_localization.launch.py --show-args
ros2 launch slam_lab cartographer_mapping.launch.py --show-args

练习1：slam_toolbox 在线建图（约30分钟）

确认章首组合演示已停止。以下 Gazebo、SLAM、RViz、键盘遥控和观测命令分别使用独立终端；tf2_echo、topic hz 等持续观察命令用 Ctrl+C 退出后再执行下一条。

启动仿真

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch sim_demo sim_bringup.launch.py \
  world:="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds/museum.sdf" \
  gui:=true rviz:=false sensor_profile:=teacher

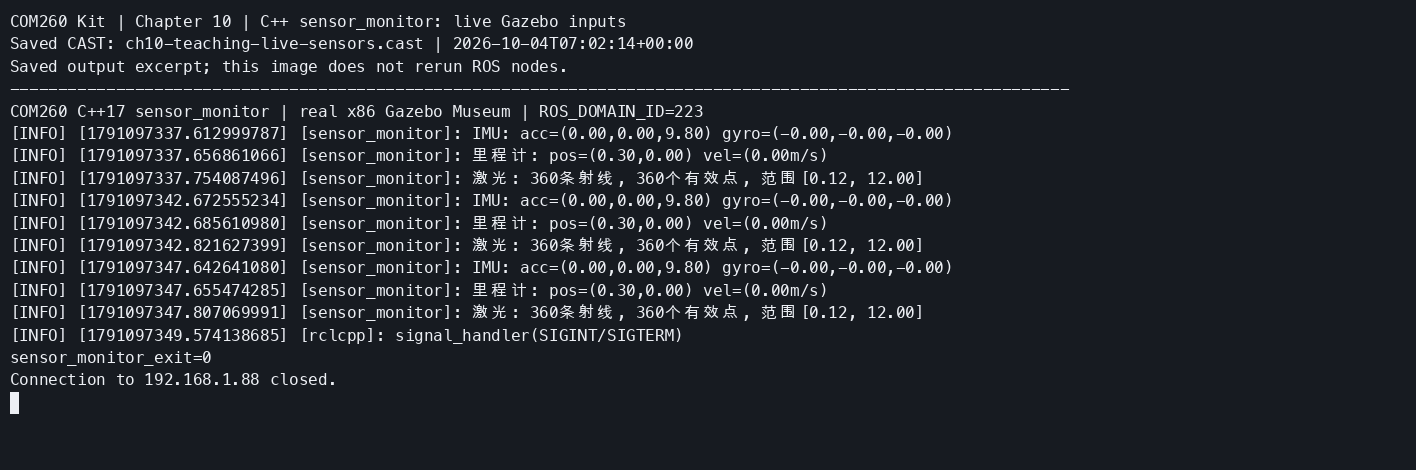

检查传感器和 TF

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 topic list | grep -E '^/(scan|odom|clock|tf|tf_static)$'
ros2 topic type /scan
ros2 topic echo /scan --once
ros2 topic echo /odom --once
ros2 run tf2_ros tf2_echo odom base_link

COM260 Kit 第 10 章实测

ros2 topic echo /scan --once --field header
ros2 run tf2_tools view_frames

COM260 Kit 第 10 章实测

slam_toolbox 参数

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

SLAM_LAB_SHARE="$(ros2 pkg prefix slam_lab)/share/slam_lab"
test -f "$SLAM_LAB_SHARE/config/mapper_params_online_async.yaml"
grep -nE 'odom_frame|map_frame|base_frame|scan_topic|mode|resolution|max_laser_range|use_sim_time' \
  "$SLAM_LAB_SHARE/config/mapper_params_online_async.yaml"

启动在线异步建图

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch slam_lab online_mapping.launch.py \
  use_sim_time:=true \
  start_monitor:=false

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 node list | grep slam
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info
ros2 service list | grep slam_toolbox

启动 RViz2

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

rviz2 --ros-args -p use_sim_time:=true

在 RViz2 中设置：

Fixed Frame 设为 map；
添加 Map，Topic 设为 /map，Durability 设为 Transient Local；
添加 LaserScan，Topic 设为 /scan；
添加 TF 和 RobotModel；
确认地图、激光扫描和机器人位姿重合。

配置完成后在 RViz2 中保存为 /workspace/output/slam_view.rviz，下次使用：

rviz2 -d /workspace/output/slam_view.rviz --ros-args -p use_sim_time:=true

键盘遥控并探索环境

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  --ros-args \
  -p speed:=0.3 \
  -p turn:=0.8

检查并保存地图

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 run nav2_map_server map_saver_cli \
  -t /map \
  -f "/workspace/output/maps/lab10_map" \
  --ros-args \
  -p use_sim_time:=true \
  -p save_map_timeout:=20.0

test -s "/workspace/output/maps/lab10_map.pgm" && \
test -s "/workspace/output/maps/lab10_map.yaml" && \
echo '地图文件保存成功'
ls -lh "/workspace/output/maps/lab10_map.pgm" "/workspace/output/maps/lab10_map.yaml"

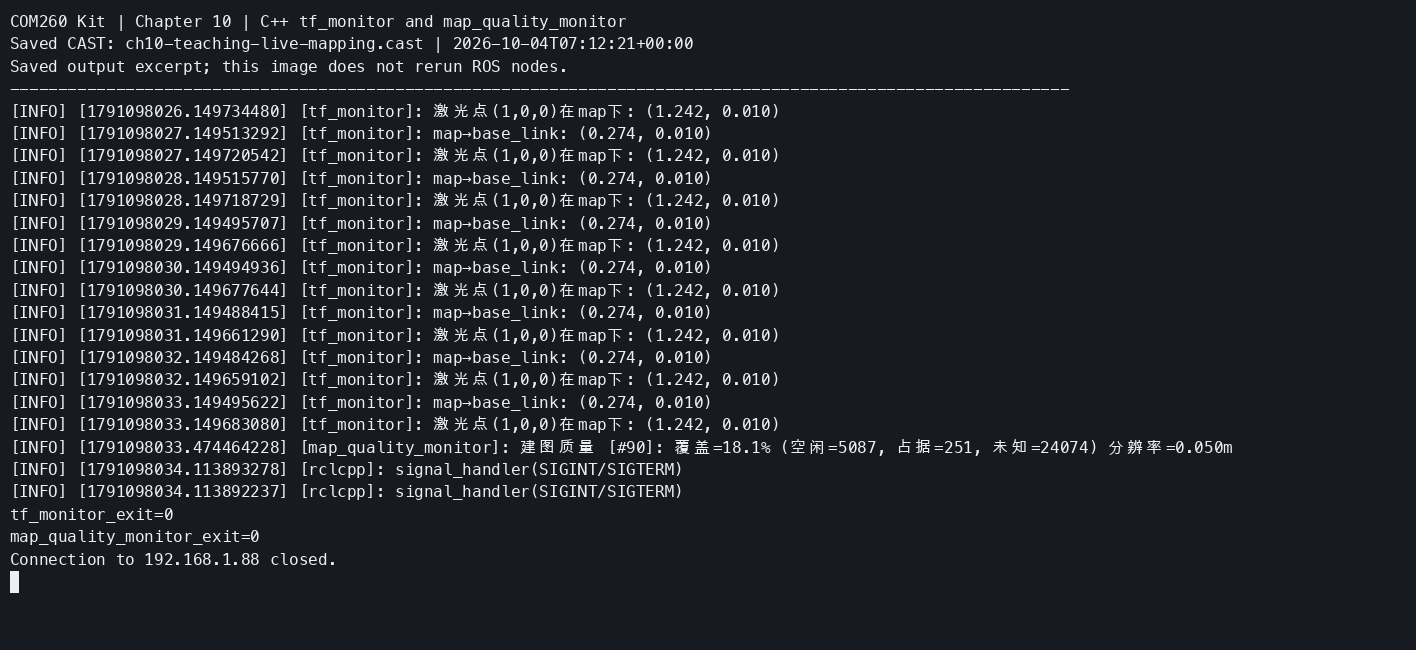

可运行的 C++ 地图监控节点

# COM260
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
source ~/my_slam_com260_ws/install/setup.bash
ros2 run slam_lab slam_monitor --ros-args -p use_sim_time:=true

COM260 Kit 第 10 章实测

练习2：加载地图并使用 AMCL 定位（约30分钟）

停止建图节点并确认地图文件

先在遥控终端停止运动并按 Ctrl+C；再分别停止练习1的 SLAM、地图监控、RViz 和 Gazebo Launch，确认它们退出。以下启动全新仿真，不与前一轮共享发布者。AMCL 与 slam_toolbox 都发布 map→odom，不能同时运行。

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

test -s "/workspace/output/maps/lab10_map.yaml"
test -s "/workspace/output/maps/lab10_map.pgm"
grep -E '^[[:space:]]*(image|resolution|origin|occupied_thresh|free_thresh):' \
  "/workspace/output/maps/lab10_map.yaml"

启动仿真

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch sim_demo sim_bringup.launch.py \
  world:="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds/museum.sdf" \
  gui:=true rviz:=false sensor_profile:=teacher

启动 AMCL 和地图服务器

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch slam_lab amcl_localization.launch.py \
  map:=/workspace/output/maps/lab10_map.yaml \
  use_sim_time:=true \
  use_rviz:=false \
  autostart:=true

检查生命周期状态：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 lifecycle get /map_server
ros2 lifecycle get /amcl
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info

COM260 Kit 第 10 章实测

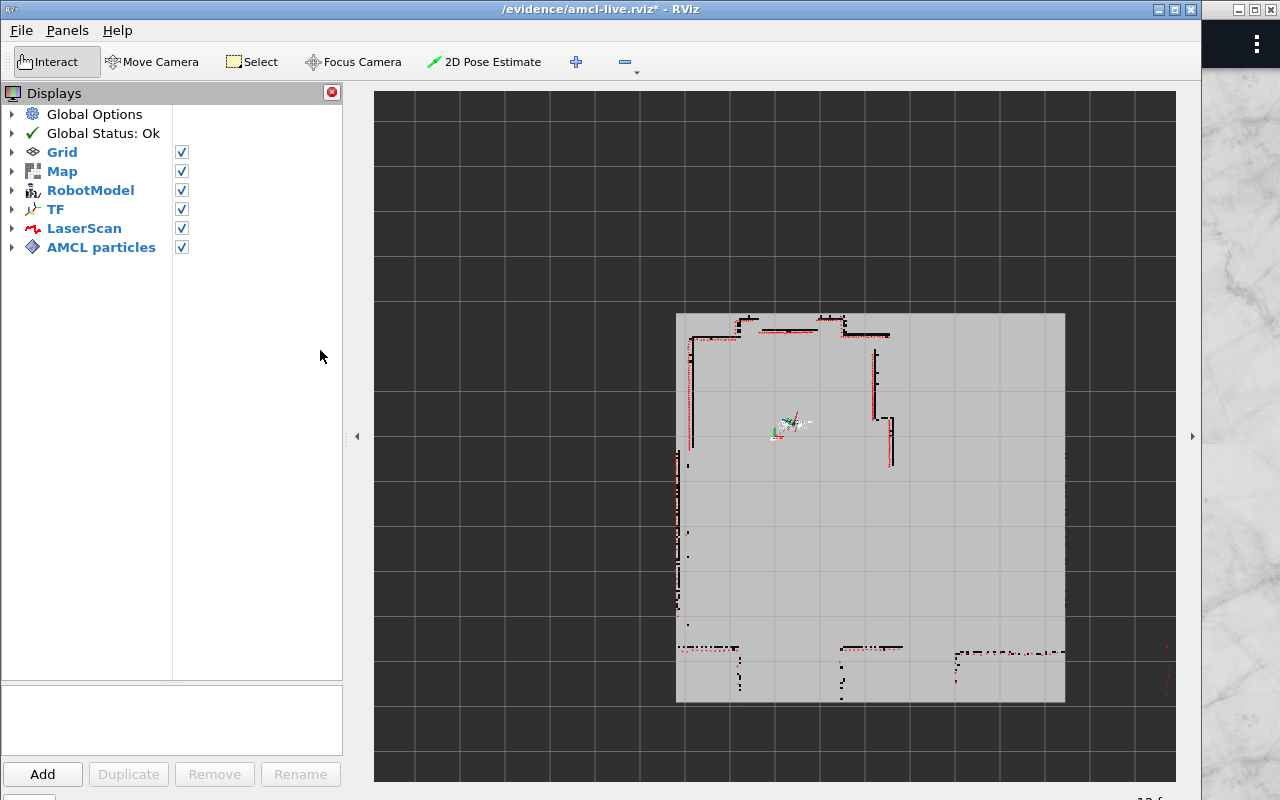

启动 RViz2 并设置初始位姿

先在 COM260 的独立终端启动评估器，再发送初始位姿。/amcl_pose 在当前 Humble 镜像中使用 reliable + transient_local；本章监控器保留 volatile 订阅，晚加入且机器人静止时会等待下一条位姿。应先开监控、再发初值或移动产生新观测，不把等待新消息误判为节点没有启动。

本章真值来自 Gazebo /ground_truth/odom，frame 为 world。只有在建图第一帧和当前仿真都从相同的 spawn_x=0, spawn_y=0, spawn_yaw=0 起步、地图坐标原点与该世界坐标一致时，才使用下列单位变换；其他地图或出生位姿必须依据独立标定确定 map 与 world 的关系，不能从 AMCL 估计反推来“对齐真值”。

# COM260 独立终端：保持该静态TF发布器运行
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
ros2 run tf2_ros static_transform_publisher \
  --x 0 --y 0 --z 0 --roll 0 --pitch 0 --yaw 0 \
  --frame-id map --child-frame-id world

# COM260 另一个终端：保持评估器运行
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
source ~/my_slam_com260_ws/install/setup.bash
ros2 run slam_lab amcl_evaluator --ros-args -p use_sim_time:=true

评估器比较最近收到的位姿，运动期间两种消息的时间戳可能不同；数值作为观测记录，静止后检查误差更易解释，不将其当成完成时间同步的精度测量。进入其他建图或定位轮次前，停止这两个终端。

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

rviz2 -d /opt/ros/humble/share/nav2_bringup/rviz/nav2_default_view.rviz \
  --ros-args -p use_sim_time:=true

在 RViz2 中：

Fixed Frame 设为 map；
确认 Map 的 Topic 是 /map，Durability 为 Transient Local，保证晚打开 RViz 时能收到地图；
添加或确认 LaserScan 的 Topic 是 /scan；
点击 2D Pose Estimate，在地图中点击机器人位置并拖动箭头指定朝向；
添加 nav2_rviz_plugins/ParticleCloud，Topic 设为 /particle_cloud，Reliability 设为 Best Effort；其消息为 nav2_msgs/msg/ParticleCloud，不能用 PoseArray 显示项。观察粒子云是否逐渐收敛到机器人附近。

COM260 Kit 第 10 章实测

# COM260
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
source ~/my_slam_com260_ws/install/setup.bash

# 可以按地图实际位置修改三个数值，yaw 单位为度
ros2 run slam_lab set_initial_pose 0.0 0.0 0.0 \
  --ros-args -p use_sim_time:=true

验证 AMCL 输出

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 topic echo /amcl_pose --once
ros2 topic echo /particle_cloud --once
ros2 run tf2_ros tf2_echo map base_link

COM260 Kit 第 10 章实测

Nav2 AMCL 的粒子话题是 /particle_cloud。移动机器人后可观察频率：

ros2 topic hz /amcl_pose

进行移动和全局重定位测试

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  --ros-args -p speed:=0.2 -p turn:=0.6

先在地图中移动到不同区域，再停止机器人并观察 /amcl_pose 是否稳定。要测试全局重定位，先在 RViz2 中给出明显错误的初始位姿，然后执行：

ros2 service list | grep reinitialize
ros2 service call /reinitialize_global_localization std_srvs/srv/Empty "{}"

COM260 Kit 第 10 章实测

练习3：Cartographer 2D 建图和地图导出（扩展，约30分钟）

使用 museum.sdf 世界文件模拟"两层"地图的两次独立建图流程。

检查 Cartographer 和楼层资源

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 pkg prefix cartographer_ros
ros2 pkg executables cartographer_ros | grep -E 'cartographer_node|occupancy_grid|pbstream'

WORLD_DIR="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds"
ls -lah "$WORLD_DIR"

使用现有的 museum.sdf 作为建筑世界：

FLOOR_WORLD="$WORLD_DIR/museum.sdf"
test -f "$FLOOR_WORLD" && echo '博物馆世界文件已找到'

Shell 变量只在当前终端有效。后续打开新终端时，需要重新设置 WORLD_DIR 和 FLOOR_WORLD。

创建完整 Lua 配置

完整的 burger_2d.lua 已在实验准备部分给出，并安装在 slam_lab 中。Cartographer 官方基础 Lua 文件也必须位于同一目录。检查：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

CARTO_LAB_CONFIG="$(ros2 pkg prefix slam_lab)/share/slam_lab/config/cartographer"
test -f "$CARTO_LAB_CONFIG/burger_2d.lua"
test -f "$CARTO_LAB_CONFIG/map_builder.lua"
test -f "$CARTO_LAB_CONFIG/trajectory_builder.lua"
ls -1 "$CARTO_LAB_CONFIG" | head

若任何 test 失败，回到“burger_2d.lua”和“编译完整功能包”步骤，确认在 x86 容器构建练习包后加载正确 overlay；基础 Lua 由本包 CMake 从官方安装目录自动安装。配置中的 provide_odom_frame = false 是因为 TurtleBot3 Burger 仿真已经提供 odom -> base_footprint -> base_link；若实际机器人没有这条 TF，应按实际 TF 架构修改。

启动第一轮 Cartographer

先停止练习1或练习2的遥控、SLAM/AMCL、地图服务器、评估器、map→world静态TF、RViz 和 Gazebo Launch，确认节点退出。打开终端1启动全新仿真：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

WORLD_DIR="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds"
FLOOR_WORLD="$WORLD_DIR/museum.sdf"

ros2 launch sim_demo sim_bringup.launch.py \
  world:="$FLOOR_WORLD" gui:=true rviz:=false sensor_profile:=teacher

打开终端2，同时启动 Cartographer 和栅格地图节点：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch slam_lab cartographer_mapping.launch.py \
  scan_topic:=/scan \
  odom_topic:=/odom \
  resolution:=0.05 \
  use_sim_time:=true

打开终端3遥控和终端4 RViz2：

# 终端3
source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash
ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  --ros-args -p speed:=0.2 -p turn:=0.6

# 终端4
source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash
rviz2 --ros-args -p use_sim_time:=true

RViz2 的 Fixed Frame 设为 map，添加 /map、/scan 和 TF。确认 Cartographer 的地图在机器人移动时更新。

保存并导出第一轮地图

先查看当前轨迹编号。通常新启动的 Cartographer 轨迹编号为 0，但应以 /submap_list 实际输出为准：

ros2 topic echo /submap_list --once
ros2 service list | grep -E 'finish_trajectory|write_state'

建图完成后，在终端5运行实验准备部分完整给出的状态保存节点：

# COM260
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
source ~/my_slam_com260_ws/install/setup.bash

ros2 run slam_lab save_cartographer_state \
  0 "/workspace/output/maps/floor1.pbstream"

在 x86 容器检查或转换后端文件：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash
test -s "/workspace/output/maps/floor1.pbstream" && echo 'floor1 状态保存成功'

该节点依次调用 ROS 2 的 /finish_trajectory 和 /write_state 服务，并检查返回状态。客户端失败会返回非零退出码；保存路径位于 x86 容器，必须在 x86 检查文件，不能在 COM260 的同名路径检查。

停止 Cartographer 节点后，将状态转换为 Nav2 可读取的地图：

ros2 run cartographer_ros cartographer_pbstream_to_ros_map \
  -pbstream_filename "/workspace/output/maps/floor1.pbstream" \
  -map_filestem "/workspace/output/maps/floor1_map" \
  -resolution 0.05

ls -lh "/workspace/output/maps/floor1_map.pgm" "/workspace/output/maps/floor1_map.yaml"

3.5 第二轮地图

第二轮必须使用全新的仿真和 Cartographer 进程。先停止第一轮的 Gazebo、Cartographer、occupancy grid 和 teleop，再执行：

# 终端1：重新启动仿真（同一世界，模拟第二层）
source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

WORLD_DIR="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds"
FLOOR_WORLD="$WORLD_DIR/museum.sdf"

ros2 launch sim_demo sim_bringup.launch.py \
  world:="$FLOOR_WORLD" gui:=true rviz:=false sensor_profile:=teacher

使用与第一轮相同的 Cartographer 和遥控命令，完成探索后保存：

# COM260
source ~/.config/ros2-course-com260-ch09-ch10/env.bash
source ~/my_slam_com260_ws/install/setup.bash

ros2 run slam_lab save_cartographer_state \
  0 "/workspace/output/maps/floor2.pbstream"

在 x86 容器检查或转换后端文件：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash
ros2 run cartographer_ros cartographer_pbstream_to_ros_map \
  -pbstream_filename "/workspace/output/maps/floor2.pbstream" \
  -map_filestem "/workspace/output/maps/floor2_map" \
  -resolution 0.05

ls -lh "/workspace/output/maps/floor2_map.pgm" "/workspace/output/maps/floor2_map.yaml"

练习4：rosbag 回放建图（约15分钟）

录制建图数据

先停止运动，再退出所有 SLAM、AMCL、Cartographer、occupancy grid、RViz 和 Gazebo Launch。打开终端1重新启动仿真：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 launch sim_demo sim_bringup.launch.py \
  world:="$(ros2 pkg prefix sim_demo)/share/sim_demo/worlds/museum.sdf" \
  gui:=true rviz:=false sensor_profile:=teacher

打开终端2，先确认传感器和控制话题已经就绪：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 topic list | grep -E '^/(scan|odom|tf|tf_static|cmd_vel)$'
ros2 topic info /scan --verbose
ros2 topic info /cmd_vel --verbose

在终端2开始录制：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

mkdir -p "/workspace/output/bags"
BAG_DIR="/workspace/output/bags/lab10_$(date +%Y%m%d_%H%M%S)"
printf '%s\n' "$BAG_DIR" | tee "/workspace/output/bags/latest_bag.txt"

ros2 bag record --use-sim-time -o "$BAG_DIR" \
  /scan /odom /tf /tf_static

--use-sim-time 让录制时间戳与仿真消息头、TF 使用同一 /clock 时间轴；不要把 /clock 加入录制列表，回放由 --clock 生成唯一时钟。看到 All requested topics are subscribed 后保持终端2运行。打开终端3遥控机器人覆盖环境：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 run teleop_twist_keyboard teleop_twist_keyboard \
  --ros-args \
  -p speed:=0.3 \
  -p turn:=0.8

/cmd_vel 直接进入本章 diff_drive_controller，由 gz_ros2_control 写入轮关节速度接口。

探索完成后在录制终端按 Ctrl+C，等待出现 Recording stopped 后检查包内容：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

BAG_DIR="$(cat "/workspace/output/bags/latest_bag.txt")"
test -d "$BAG_DIR"
ros2 bag info "$BAG_DIR"

COM260 Kit 第 10 章实测

回放数据并建图

停止遥控并退出整个 Gazebo Launch，确保 sensor_bridge、robot_state_publisher、控制器管理器和仿真时钟均退出，避免回放期间存在两套传感器或 TF 发布者。再打开终端1检查：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 node list | grep -E 'sensor_bridge|robot_state_publisher|controller_manager|slam_toolbox|amcl|cartographer'
ros2 topic info /scan --verbose
ros2 topic info /odom --verbose
ros2 topic info /clock --verbose

节点过滤命令应无输出，/scan、/odom 与 /clock 应不存在或显示 Publisher count: 0。然后启动同步建图：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

SLAM_PARAMS="$(ros2 pkg prefix slam_lab)/share/slam_lab/config/mapper_params_online_async.yaml"
ros2 launch slam_toolbox online_sync_launch.py \
  slam_params_file:="$SLAM_PARAMS" \
  use_sim_time:=true

看到 /slam_toolbox 节点后，打开终端2回放：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

BAG_DIR="$(cat "/workspace/output/bags/latest_bag.txt")"
test -d "$BAG_DIR"
ros2 bag play "$BAG_DIR" --clock --rate 0.5

打开终端3运行 RViz2，固定坐标系设为 map，观察地图是否随着回放生成：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

rviz2 --ros-args -p use_sim_time:=true

如果练习1已经保存 RViz 配置，也可以运行：

rviz2 -d "/workspace/output/slam_view.rviz" \
  --ros-args -p use_sim_time:=true

RViz2 的 Fixed Frame 设为 map，添加 /map、/scan 和 TF。地图消息更新与 RViz 显示分别检查：若 RViz 有持续着色器错误，先恢复可用图形环境，不能只凭日志声称显示通过。

COM260 Kit 第 10 章实测

回放过程中打开终端4验证数据来源、地图和 TF：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

ros2 node list | grep -E 'rosbag2_player|slam_toolbox'
ros2 topic info /clock --verbose
ros2 topic info /scan --verbose
ros2 topic info /odom --verbose
ros2 topic info /map --verbose
ros2 topic echo /map --once --field info
ros2 run tf2_ros tf2_echo map base_link

看到 map -> base_link 连续输出后停止 tf2_echo。/clock、/scan 和 /odom 应各有一个来自 rosbag2_player 的发布者，/map 应由 slam_toolbox 发布。/tf 同时包含 rosbag 回放的里程计 TF 和 slam_toolbox 发布的 map -> odom，因此可能有两个发布者，这是正常现象。偶尔出现一条 Message Filter dropping message ... queue is full 通常是启动瞬间的缓存抖动；如果持续出现，停止回放并把 --rate 0.5 降到 --rate 0.2。

回放结束后保存地图：

source /opt/gz_ros2_control_ws/install/setup.bash
source /workspace/install/setup.bash
source /workspace/output/exercises/ch10_ws/install/setup.bash

mkdir -p "/workspace/output/maps"
ros2 topic info /map --verbose

ros2 run nav2_map_server map_saver_cli \
  -t /map \
  -f "/workspace/output/maps/lab10_replayed_map" \
  --ros-args \
  -p use_sim_time:=true \
  -p save_map_timeout:=20.0

test -s "/workspace/output/maps/lab10_replayed_map.pgm" && \
test -s "/workspace/output/maps/lab10_replayed_map.yaml" && \
echo '回放地图保存成功'
ls -lh "/workspace/output/maps/lab10_replayed_map.pgm" \
       "/workspace/output/maps/lab10_replayed_map.yaml"

结束实验

实时仿真轮次先停止遥控和运动检查，确认 /odom 速度接近零，再停止后端与 Gazebo；离线回放轮次停止 rosbag player、同步建图和 RViz。x86 宿主停止本章容器：

cd ~/ROS2_RISCV_COM260_CH09_CH10
bash course_support/k3_com260_kit/scripts/x86-ch09-ch10.bash stop ch10

各算法、独立练习工作区、地图文件和素材的验收记录见运行证据。Cartographer 两轮均为同一 Museum 的独立二维建图，不代表真实多楼层三维重建。

RISC-V ROS2 机器人操作系统编程技术

ch10 · SLAM基本概念与贝叶斯框架

第10章 实验指导书：SLAM 建图与定位（COM260 Kit）

安装全部依赖

当前仓库仿真验证：slam_toolbox 在线建图

实验目标

运行步骤

观察与验收

实际运行证据

实验准备：创建 slam_lab 功能包

创建目录

package.xml

CMakeLists.txt

slam_monitor.cpp

initial_pose_setter.cpp

amcl_evaluator.cpp

cartographer_state_saver.cpp

online_mapping.launch.py

amcl_localization.launch.py

cartographer_mapping.launch.py

mapper_params_online_async.yaml

nav2_localization.yaml

burger_2d.lua

编译完整功能包

练习1：slam_toolbox 在线建图（约30分钟）

启动仿真

检查传感器和 TF

slam_toolbox 参数

启动在线异步建图

启动 RViz2

键盘遥控并探索环境

检查并保存地图

可运行的 C++ 地图监控节点

练习2：加载地图并使用 AMCL 定位（约30分钟）

停止建图节点并确认地图文件

启动仿真

启动 AMCL 和地图服务器

启动 RViz2 并设置初始位姿

验证 AMCL 输出

进行移动和全局重定位测试

练习3：Cartographer 2D 建图和地图导出（扩展，约30分钟）

检查 Cartographer 和楼层资源

创建完整 Lua 配置

启动第一轮 Cartographer

保存并导出第一轮地图

3.5 第二轮地图

练习4：rosbag 回放建图（约15分钟）

录制建图数据

回放数据并建图

结束实验

第10章实验指导书：SLAM 建图与定位（COM260 Kit）
